RM38N0EC _58 Vehicle Interior _111840 SEAT BELT _0501513 FRONT SEAT OUTER BELT ASSEMBLY G

SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

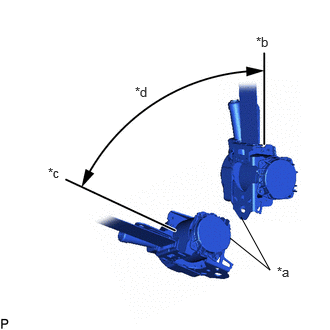

Hide 73210 1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

a.
B585710C01
2.396,2.479 2.813,2.813 2.813,2.813 2.51,2.26 false 2.885,2.75 3.198,2.906 0.313,0.156 10 false *a 2.667,0.354 2.969,0.594 0.302,0.24 10 false *b 0.5,1.719 0.823,1.896 0.323,0.177 10 false *c 1.406,0.875 1.698,1.094 0.292,0.219 10 false *d
*a Retractor
*b Unlock
*c Lock
*d 45°


Before installing the front seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the front seat outer belt assembly.
