RM38N0EC _58 Vehicle Interior _111830 DOOR LOCK _0501509 BACK DOOR LOCK A

DOOR LOCK BACK DOOR LOCK REMOVAL

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0224,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0224,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0224,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0224,

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0227,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0227,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0227,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0227,

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0156,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0156,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0156,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0156,

Hide Display 67938A 4.REMOVE DOOR PULL HANDLE LH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0257,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0257,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0257,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0257,

Hide Display 67937B 5.REMOVE DOOR PULL HANDLE RH (w/o Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0256,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0256,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0256,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0257,

Hide Display 64785A 6.REMOVE BACK DOOR TRIM BASE (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0215,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0215,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0215,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0215,

Hide Display 74811D 7.REMOVE DOOR PULL HANDLE (w/ Power Back Door)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0216,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0216,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0216,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0216,

Hide Display 67750 8.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0222,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0222,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0222,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0222,

Hide Display 67372A 9.REMOVE BACK DOOR WEIGHT

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0233,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0233,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0233,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0233,

Hide Display 69350P 10.REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/o Power Back Door)

a.

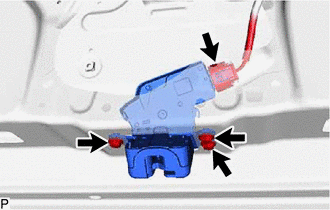

B628808

Disconnect the connector.

b.

Remove the 3 bolts and back door lock assembly with courtesy light switch.

Hide Display 69350P 11.REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/ Power Back Door)

a.

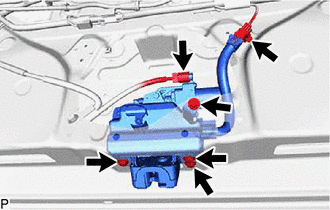

B628807

Disconnect the 2 connectors.

b.

Remove the 4 bolts and back door lock assembly with courtesy light switch.
