DOOR LOCK  BACK DOOR LOCK  INSTALLATION

69350P 1.INSTALL BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/o Power Back Door)

HINT:

Make sure to remove the string before installing a new back door lock assembly with courtesy light switch.

a.

Apply MP grease to the sliding parts of the back door lock assembly with courtesy light switch.

b.

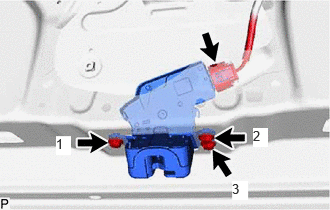

0.583,1.417 0.74,1.615 0.156,0.198 10 true 1 2.635,1.333 2.792,1.531 0.156,0.198 10 true 2 2.417,1.885 2.583,2.083 0.167,0.198 10 true 3

Install the 3 bolts.

Torque:

7.0 N*m (71 kgf*cm, 62 in.*lbf)

HINT:

Tighten the bolts in the order shown in the illustration.

c.

Connect the connector.

69350P 2.INSTALL BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/ Power Back Door)

HINT:

Make sure to remove the string before installing a new back door lock assembly with courtesy light switch.

a.

Apply MP grease to the sliding parts of the back door lock assembly with courtesy light switch.

b.

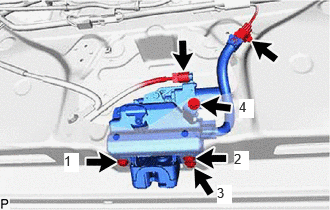

0.667,1.594 0.823,1.792 0.156,0.198 10 true 1 2.438,1.573 2.594,1.771 0.156,0.198 10 true 2 2.26,1.927 2.417,2.125 0.156,0.198 10 true 3 2.49,1.031 2.646,1.229 0.156,0.198 10 true 4

Install the 4 bolts.

Torque:

7.0 N*m (71 kgf*cm, 62 in.*lbf)

HINT:

Tighten the bolts in the order shown in the illustration.

c.

Connect the 2 connectors.

67372A 3.INSTALL BACK DOOR WEIGHT

67750 4.INSTALL BACK DOOR TRIM BOARD ASSEMBLY

74811D 5.INSTALL DOOR PULL HANDLE (w/ Power Back Door)

64785A 6.INSTALL BACK DOOR TRIM BASE (w/ Power Back Door)

67937B 7.INSTALL DOOR PULL HANDLE RH (w/o Power Back Door)

67938A 8.INSTALL DOOR PULL HANDLE LH (w/o Power Back Door)

67938A 9.INSTALL BACK DOOR SIDE GARNISH LH

67937B 10.INSTALL BACK DOOR SIDE GARNISH RH

67939B 11.INSTALL BACK DOOR CENTER GARNISH
