DOOR LOCK  FRONT DOOR LOCK  INSPECTION


PROCEDURE

Hide 69040A 1.INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

a.

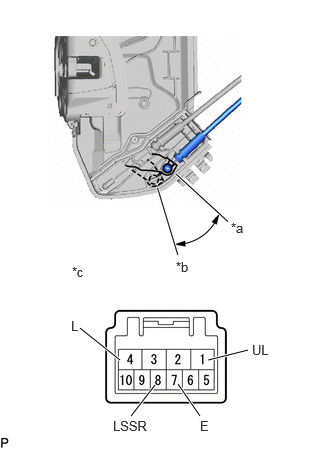

B587814C01
0.833,3.417 1.25,3.75 true 2.167,3.75 2.583,3.646 true 1.365,4.333 1.615,4.01 true 2.083,4.333 1.854,4 true 2.406,2.292 2.719,2.448 0.313,0.156 10 false *a 1.833,2.698 2.146,2.854 0.313,0.156 10 false *b 0.75,2.75 1.063,2.906 0.313,0.156 10 false *c 0.74,3.313 0.896,3.51 0.156,0.198 10 false L 2.625,3.563 2.938,3.76 0.313,0.198 10 false UL 1.177,4.354 1.792,4.552 0.615,0.198 10 false LSSR 2.083,4.354 2.24,4.552 0.156,0.198 10 false E
*a Unlock
*b Lock
*c Component without harness connected
(Front Door Lock with Motor Assembly LH)


Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:
Auxiliary Battery Connection Result
Auxiliary battery positive (+) → Terminal 4 (L)
Auxiliary battery negative (-) → Terminal 1 (UL) 		Locks
Auxiliary battery positive (+) → Terminal 1 (UL)
Auxiliary battery negative (-) → Terminal 4 (L) 		Unlocks


If the result is not as specified, replace the front door lock with motor assembly LH.



b.

Check the operation of the door unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
8 (LSSR) - 7 (E) Locked 10 kΩ or higher
8 (LSSR) - 7 (E) Unlocked Below 1 Ω


If the result is not as specified, replace the front door lock with motor assembly LH.



c.

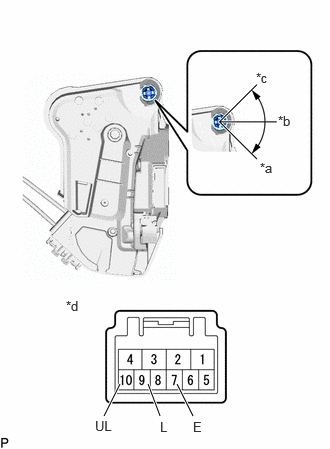

B587813C01
1.083,4.333 1.25,4 true 1.667,4.333 1.542,4 true 2.01,4.333 1.844,4 true 2.708,1.667 3.021,1.865 0.313,0.198 10 false *a 2.896,1.177 3.146,1.417 0.25,0.24 10 false *b 2.667,0.729 2.979,0.927 0.313,0.198 10 false *c 0.688,3.104 1,3.302 0.313,0.198 10 false *d 1.667,4.365 1.823,4.563 0.156,0.198 10 false L 0.99,4.354 1.302,4.552 0.313,0.198 10 false UL 2.01,4.365 2.167,4.563 0.156,0.198 10 false E
*a Unlock
*b Neutral
*c Lock
*d Component without harness connected
(Front Door Lock with Motor Assembly LH)


Check the operation of the door key lock and unlock switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
9 (L) - 7 (E) Held to lock side Below 1 Ω
9 (L) - 7 (E) Neutral or held to unlock side 10 kΩ or higher
10 (UL) - 7 (E) Held to unlock side Below 1 Ω
10 (UL) - 7 (E) Neutral or held to lock side 10 kΩ or higher


If the result is not as specified, replace the front door lock with motor assembly LH.



Hide 69030A 2.INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH

a.
B587815C01
0.875,3.583 1.281,3.688 true 1.438,4.333 1.604,4 true 1.938,4.333 1.854,4 true 2.167,3.75 2.583,3.635 true 1,2.24 1.313,2.396 0.313,0.156 10 false *a 1.583,2.646 1.896,2.802 0.313,0.156 10 false *b 0.531,3.052 0.844,3.208 0.313,0.156 10 false *c 0.76,3.5 0.917,3.698 0.156,0.198 10 false L 2.625,3.542 2.938,3.74 0.313,0.198 10 false UL 1.781,4.354 2.396,4.552 0.615,0.198 10 false LSSR 1.385,4.344 1.542,4.542 0.156,0.198 10 false E
*a Unlock
*b Lock
*c Component without harness connected
(Front Door Lock with Motor Assembly RH)


Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:
Auxiliary Battery Connection Result
Auxiliary battery positive (+) → Terminal 4 (L)
Auxiliary battery negative (-) → Terminal 1 (UL) 		Locks
Auxiliary battery positive (+) → Terminal 1 (UL)
Auxiliary battery negative (-) → Terminal 4 (L) 		Unlocks


If the result is not as specified, replace the front door lock with motor assembly RH.



b.

Check the operation of the door unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7 (LSSR) - 8 (E) Locked 10 kΩ or higher
7 (LSSR) - 8 (E) Unlocked Below 1 Ω


If the result is not as specified, replace the front door lock with motor assembly RH.
