DOOR LOCK FRONT DOOR LOCK INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
69760B
1.INSTALL FRONT DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE
Engage the clamp to install the front door inside lock/unlock knob locking cable.
69720D
2.INSTALL FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE
Engage the clamp to install the front door lock open lever remote control cable.
69036A

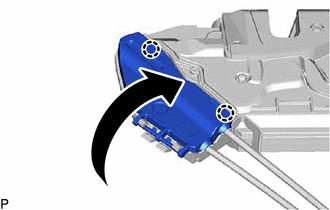

3.INSTALL FRONT DOOR LOCK COVER SUB-ASSEMBLY
Engage the 2 claws.
Engage the 2 claws to install the front door lock cover sub-assembly as shown in the illustration.
69040A
4.INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY
- NOTICE:
- ·
When reusing a removed front door lock with motor assembly, replace the door lock wiring harness seal with a new one.
·Do not allow grease or dust to adhere to the door lock wiring harness seal installation surface.
·Reusing a door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water ingress. This may result in a malfunction of the front door lock with motor assembly.
Apply MP grease to the sliding parts of the front door lock with motor assembly.
When reusing the front door lock with motor assembly:
Install a new door lock wiring harness seal to the front door lock with motor assembly.
Using a T30 "TORX" socket wrench, install the front door lock with motor assembly with the 3 screws.
- Torque:
- 5.5 N*m (56 kgf*cm, 49 in.*lbf)
69312

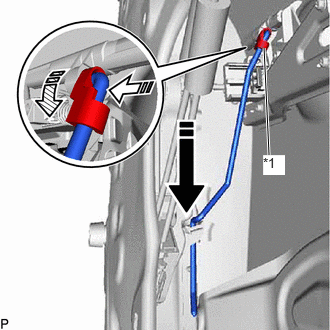

5.INSTALL FRONT DOOR LOCK OPEN ROD
| *1 | Snap |
|
Install in this Direction (1) |
|
Install in this Direction (2) |
|
Install in this Direction (3) |
Install the front door lock open rod in the direction indicated by the arrow (1).
- HINT:
-
Make sure that the front door lock open rod is securely connected to the front door lock with motor assembly.
Engage the snap as shown in the illustration to connect the front door lock open rod.
6.INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
7.INSTALL HOLE PLUG (for Driver Side)
69220
8.INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
67404F
9.INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
68151D
10.INSTALL FRONT DOOR GLASS RUN
68102
11.INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
12.INSTALL HOLE PLUG
67832
13.INSTALL FRONT DOOR SERVICE HOLE COVER
67831D
14.INSTALL FRONT DOOR SERVICE HOLE COVER CLIP
68172A
15.INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
67602
16.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
74222A
17.INSTALL FRONT DOOR ARMREST COVER
69278B
18.INSTALL FRONT DOOR INSIDE HANDLE BEZEL
19.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for M20C-FKS, M20D-FKS:
for A25D-FXS, A25F-FXS:
65351A
20.INSTALL BATTERY HOLE COVER (for HV Model)
58416K
21.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)
22. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
23.INITIALIZE POWER WINDOW CONTROL SYSTEM
24.INSPECT POWER WINDOW OPERATION
