DOOR / HATCH  FUEL LID OPENER SWITCH  INSPECTION


PROCEDURE

Hide 84841A 1.INSPECT FUEL LID OPENER SWITCH

a.
B577969C02
0.917,3.083 1.198,2.698 true 2.021,3.104 2.021,2.708 true 1.406,3.094 1.406,2.698 true 2.542,3.104 2.229,2.698 true 0.479,1.771 0.76,1.938 0.281,0.167 10 false *a 0.844,3.094 1.281,3.323 0.438,0.229 10 false ILL+ 2.458,3.135 2.896,3.365 0.438,0.229 10 false ILL- 1.365,3.104 1.802,3.333 0.438,0.229 10 false IG 2,3.104 2.25,3.333 0.25,0.229 10 false E

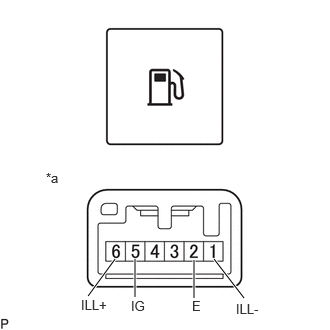

*a Component without harness connected
(Fuel Lid Opener Switch)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
5 (IG) - 2 (E) Pushed (ON) Below 1 Ω
5 (IG) - 2 (E) Not pushed (OFF) 10 kΩ or higher


If the result is not as specified, replace the fuel lid opener switch.


b.

Check that the switch illuminates.

i.

Apply auxiliary battery voltage to the fuel lid opener switch and check that the switch illuminates.

OK:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → 6 (ILL+)
Auxiliary battery negative (-) → 1 (ILL-) 		Illuminates


If the result is not as specified, replace the fuel lid opener switch.
