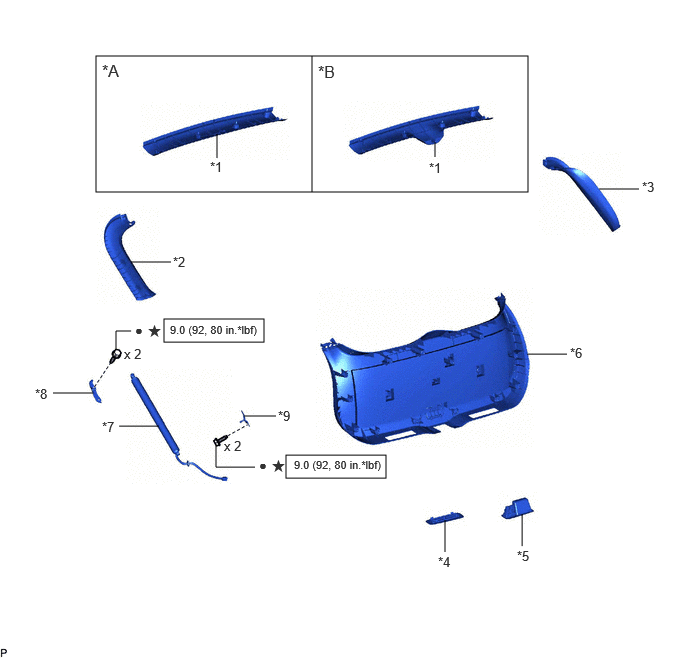

DOOR / HATCH  POWER BACK DOOR DRIVE UNIT  COMPONENTS

ILLUSTRATION

1.708,3.323 2.75,3.563 1.042,0.24 2.979,4.74 4.021,4.979 1.042,0.24 1,0.583 5.5,2 4.5,1.417 3.25,2 3.25,0.583 false 2.26,1.646 2.26,1.396 false 4.531,1.635 4.531,1.479 false 4.635,5.75 4.635,5.417 false 5.438,5.688 5.438,5.354 false 1.365,2.729 1.781,2.729 false 6.24,1.969 6.656,1.969 false 5.49,3.688 5.906,3.688 false 0.552,4.094 0.969,4.094 false 1.24,4.438 1.656,4.438 false 2.542,4.333 2.875,4.333 false 1.208,3.635 1.208,3.448 1.208,3.448 1.365,3.448 false 2.656,4.865 2.25,4.865 2.25,4.865 2.25,4.635 false 1.063,0.635 1.375,0.948 0.313,0.313 12 false *A 3.313,0.646 3.625,0.938 0.313,0.292 12 false *B 2.188,1.656 2.479,1.865 0.292,0.208 10 false *1 2.896,4.25 3.188,4.469 0.292,0.219 10 false *9 0.365,4.021 0.604,4.313 0.24,0.292 10 false *8 1.802,2.646 2.115,2.885 0.313,0.24 10 false *2 6.688,1.865 6.99,2.104 0.302,0.24 10 false *3 4.563,5.771 4.917,6.01 0.354,0.24 10 false *4 5.938,3.594 6.208,3.813 0.271,0.219 10 false *6 5.385,5.708 5.698,5.927 0.313,0.219 10 false *5 1.063,4.365 1.375,4.667 0.313,0.302 10 false *7 1.406,3.354 1.615,3.583 0.208,0.229 10 false ● 1.542,3.365 1.74,3.552 0.198,0.188 10 false ★ 4.469,1.667 4.76,1.875 0.292,0.208 10 false *1 2.698,4.76 2.906,4.99 0.208,0.229 10 false ● 2.833,4.771 3.031,4.958 0.198,0.188 10 false ★ 1.771,3.365 3.375,3.656 1.604,0.292 8 false 9.0 (92, 80 in.*lbf) 3.063,4.771 4.667,5.063 1.604,0.292 8 false 9.0 (92, 80 in.*lbf) 1.292,3.604 1.677,3.885 0.385,0.281 10 false x 2 2.333,4.563 2.719,4.844 0.385,0.281 10 false x 2

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	BACK DOOR CENTER GARNISH	*2	BACK DOOR SIDE GARNISH LH
*3	BACK DOOR SIDE GARNISH RH	*4	BACK DOOR TRIM BASE
*5	DOOR PULL HANDLE	*6	BACK DOOR TRIM BOARD ASSEMBLY
*7	POWER BACK DOOR UNIT SET ASSEMBLY	*8	BACK DOOR DAMPER STAY UPPER BRACKET
*9	BACK DOOR DAMPER STAY LOWER BRACKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
★	Precoated part	-	-
