DOOR / HATCH POWER BACK DOOR TOUCH SENSOR REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0224,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0224,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0224,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0224,

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0227,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0227,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0227,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0227,

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 64785A 4.REMOVE BACK DOOR TRIM BASE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0215,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0215,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0215,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0215,

Hide Display 74811D 5.REMOVE DOOR PULL HANDLE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0216,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0216,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0216,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0216,

Hide Display 67750 6.REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0222,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0222,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0222,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0222,

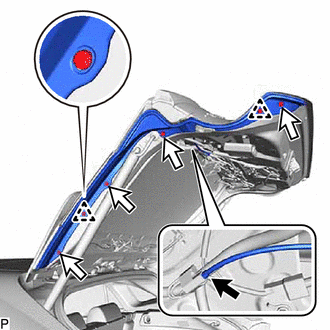

Hide Display 84280D 7.REMOVE POWER BACK DOOR SENSOR ASSEMBLY

a.

B629729

Disconnect the connector.

b.

Remove the 4 screws.

c.

Disengage the 2 clips and remove the power back door sensor assembly.
