RM38N0EC _59 Vehicle Exterior _111831 DOOR / HATCH _0501467 POWER BACK DOOR TOUCH SENSOR G

DOOR / HATCH  POWER BACK DOOR TOUCH SENSOR  INSPECTION


PROCEDURE

Hide 84280D 1.INSPECT POWER BACK DOOR SENSOR ASSEMBLY LH

a.
B577979C02
0.823,3.323 1.135,3.521 0.313,0.198 10 false *a 0.354,0.219 0.667,0.417 0.313,0.198 10 false *b 0.365,1.76 0.677,1.958 0.313,0.198 10 false *c

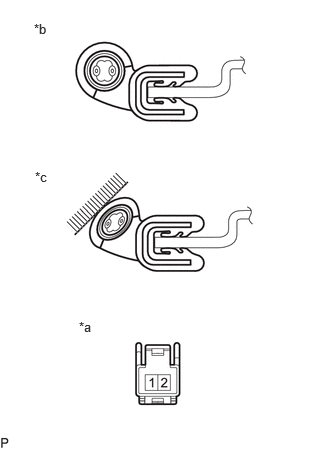

*a Component without harness connected
(Power Back Door Sensor Assembly LH)
*b Not Pressed
*c Pressed


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 Not pressed 2850 to 3150 Ω
1 - 2 Pressed Below 400 Ω


If the result is not as specified, replace the power back door sensor assembly LH.


Hide 84270G 2.INSPECT POWER BACK DOOR SENSOR ASSEMBLY RH

a.
B577979C02
0.823,3.323 1.135,3.521 0.313,0.198 10 false *a 0.354,0.219 0.667,0.417 0.313,0.198 10 false *b 0.365,1.76 0.677,1.958 0.313,0.198 10 false *c
*a Component without harness connected
(Power Back Door Sensor Assembly RH)
*b Not Pressed
*c Pressed


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 Not pressed 2850 to 3150 Ω
1 - 2 Pressed Below 400 Ω


If the result is not as specified, replace the power back door sensor RH.
