RM38N0EC _59 Vehicle Exterior _111831 DOOR / HATCH _0501466 RESERVE LOCK SWITCH A

DOOR / HATCH RESERVE LOCK SWITCH INSTALLATION

PROCEDURE

Hide Display 84930P 1.INSTALL DOOR CONTROL SWITCH ASSEMBLY

a.

B588512C01

0,0 0,0 false

V113147

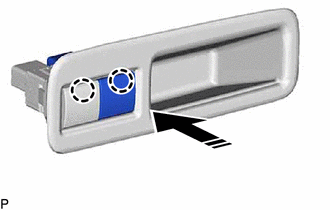

Install in this Direction

Engage the 2 claws to install the door control switch assembly as shown in the illustration.

Hide Display 74811D 2.INSTALL DOOR PULL HANDLE
