1.INSPECT DOOR CONTROL SWITCH ASSEMBLY
Check the switch.

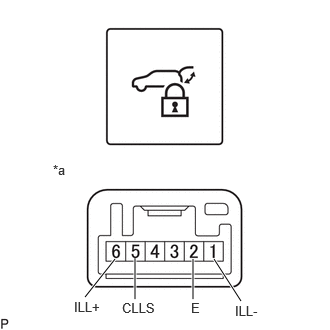

| *a | Component without harness connected
(Door Control Switch Assembly) |
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| 5 (CLLS) - 2 (E) | Pressed (On) | Below 1 Ω |
| 5 (CLLS) - 2 (E) | Not pressed (Off) | 10 kΩ or higher |
If the result is not as specified, replace the door control switch assembly.
Check the switch illumination.
Apply auxiliary battery voltage to the switch connector and check that the door control switch assembly illuminates.
| Auxiliary Battery Connection | Specified Condition |
|---|---|
| Auxiliary battery positive (+) → Terminal 6 (ILL+)
Auxiliary battery negative (-) → Terminal 1 (ILL-) |
Illumination illuminates |
If the result is not as specified, replace the door control switch assembly.
