RM38N0EC _59 Vehicle Exterior _111831 DOOR / HATCH _0501465 POWER BACK DOOR CLOSER SWITCH A

DOOR / HATCH POWER BACK DOOR CLOSER SWITCH REMOVAL

PROCEDURE

Hide Display 74811D 1.REMOVE DOOR PULL HANDLE

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0216,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0216,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0216,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0216,

Hide Display 84931C 2.REMOVE BACK DOOR CONTROL SWITCH

a.

B588509C01

0,0 0,0 false

V113147

Remove in this Direction

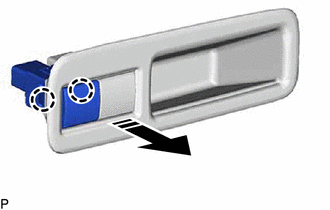

Disengage the 2 claws to remove the back door control switch as shown in the illustration.
