DOOR / HATCH  BACK DOOR  ADJUSTMENT


CAUTION / NOTICE / HINT

B360752C01
0.667,0.177 0.979,0.333 0.313,0.156 10 false *a 2.521,0.177 2.833,0.333 0.313,0.156 10 false *b

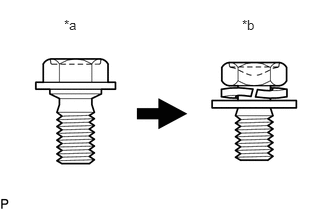

*a Centering Bolt
*b Standard Bolt


HINT:
·

Centering bolts are used to install the door hinges to the vehicle body and door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts (with washers) when making adjustments.

·

The specified torque for standard bolts is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 1.INSPECT BACK DOOR

a.

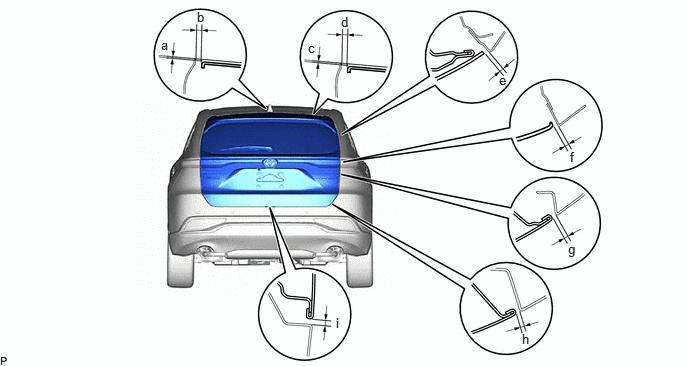

Check that the clearance measurements of areas a through i are within each standard range.

B629721N01
1.677,0.385 1.833,0.583 0.156,0.198 10 false a 2.052,0.094 2.208,0.292 0.156,0.198 10 false b 3.208,0.417 3.365,0.615 0.156,0.198 10 false c 3.552,0.146 3.708,0.344 0.156,0.198 10 false d 5.198,0.75 5.354,0.948 0.156,0.198 10 false e 5.938,1.552 6.146,1.813 0.208,0.26 10 false f 5.917,2.51 6.125,2.771 0.208,0.26 10 false g 5.438,3.448 5.646,3.708 0.208,0.26 10 false h 3.5,3.281 3.708,3.542 0.208,0.26 10 false i

Standard Clearance
Area Measurement Area Measurement
a -1.45 to 2.55 mm (-0.0571 to 0.100 in.) b 5.85 to 9.85 mm (0.230 to 0.388 in.)
c -1.45 to 2.55 mm (-0.0571 to 0.100 in.) d 5.85 to 9.85 mm (0.230 to 0.388 in.)
e 3.35 to 7.35 mm (0.132 to 0.289 in.) f 3.85 to 7.85 mm (0.152 to 0.309 in.)
g 3.35 to 7.35 mm (0.132 to 0.289 in.) h 3.35 to 7.35 mm (0.132 to 0.289 in.)
i 3.85 to 8.85 mm (0.152 to 0.348 in.) - -


Hide 4.ADJUST BACK DOOR

a.
B629722

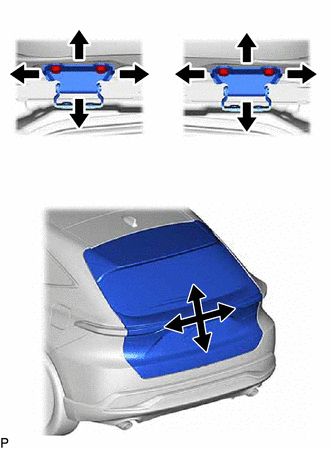

Loosen the 4 hinge bolts on the back door and adjust the back door position.


b.

Tighten the 4 hinge bolts on the vehicle body after adjustment.

Torque:
19.5 N*m (199 kgf*cm, 14 ft.*lbf)


c.
B629723

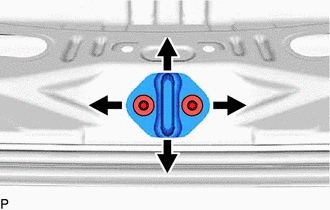

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.


d.

Using a brass bar and a hammer, hit the striker to adjust its position.


e.

Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)
