DOOR / HATCH  REAR DOOR OPENING TRIM WEATHERSTRIP  INSTALLATION

*a	Paint Mark
	Cutout

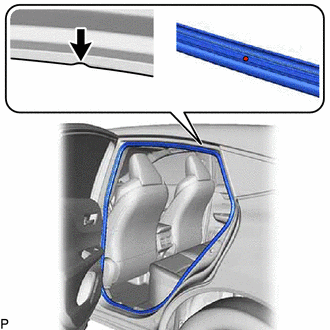

Align the paint mark on the rear door opening trim weatherstrip with the cutout on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.

NOTICE:

·

Make sure that the paint mark is aligned with the cutout when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.

HINT:

·

Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

Paint Mark:

Location	Color
for LH Side	Yellowish Green
for RH Side	Light Blue
