Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1. PRECAUTION
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
2. REPAIR INSTRUCTION
67856B
3.INSTALL FRONT DOOR PANEL PROTECTOR
Engage the guide to install the front door panel protector.
75074
4.INSTALL FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY
5.INSTALL HOLE PLUG
75922M
6.INSTALL NO. 1 BLACK OUT TAPE
75986B
7.INSTALL NO. 3 FRONT DOOR STRIPE
75926
8.INSTALL NO. 3 BLACK OUT TAPE
75072A
9.INSTALL FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY
75756D
10.INSTALL FRONT DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)

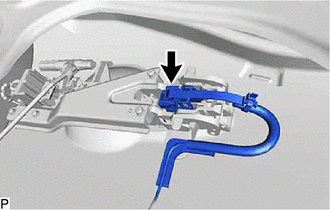

67864B
11.INSTALL FRONT DOOR NO. 2 WEATHERSTRIP
Engage the 8 clips.
Engage the clip and install the front door No. 2 weatherstrip.
67001A
12.INSTALL FRONT DOOR PANEL CUSHION
Engage the 2 claws to install the front door panel cushion.
75792
13.INSTALL DOOR WINDOW FRAME MOULDING CLIP
Engage the 2 claws to install the door window frame moulding clip.
67862

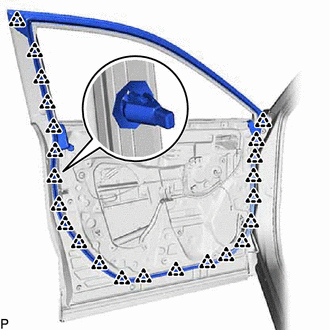

14.INSTALL FRONT DOOR WEATHERSTRIP
Engage the 23 clips and install the front door weatherstrip.
68610

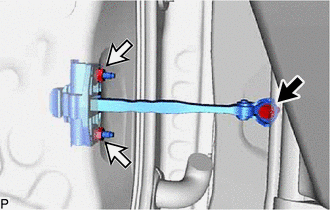

15.INSTALL FRONT DOOR CHECK ASSEMBLY
Clean the bolt hole in the vehicle body.
Clean the threads of the bolt.
Apply adhesive to the threads of the bolt.
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
Install the front door check assembly with the bolt and 2 nuts.
69202A

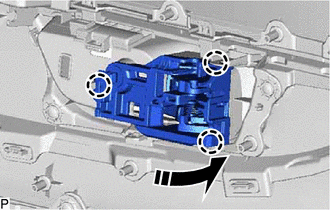

16.INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
Apply MP grease to the sliding parts on the front door outside handle frame sub-assembly.
|
Install in this Direction |
Engage the 2 guides as shown in the illustration.
Using a T30 "TORX" socket wrench, install the front door outside handle frame sub-assembly with the screw.
69242H
17.INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD
Engage the 4 guides to install the front door rear outside handle pad.
69241H
18.INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD
Engage the guide and 2 claws to install the front door front outside handle pad.
69217D
19.INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)
Engage the 2 claws.
Using a T30 "TORX" socket wrench, install the front door outside handle cover with the screw.
20.INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
Using a T30 "TORX" socket wrench, install the front door lock cylinder assembly with the screw.
69040A

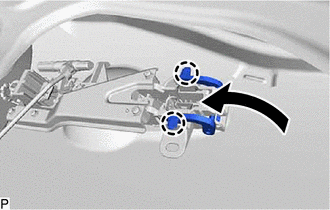

21.INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY
69312
22.INSTALL FRONT DOOR LOCK OPEN ROD

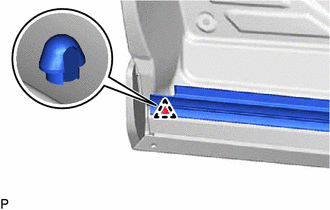

23.INSTALL HOLE PLUG
Install the hole plug.
69220

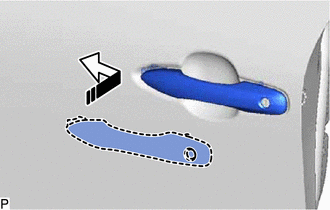

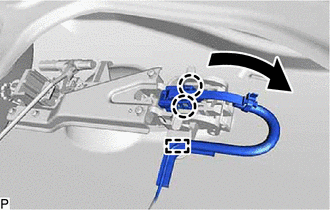

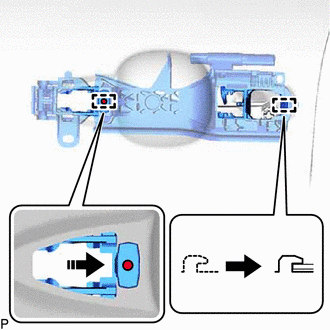

24.INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY
|
Install in this Direction |
Insert the front end of the front door outside handle assembly into the front door outside handle frame sub-assembly as shown in the illustration.
Insert the rear end of the front door outside handle assembly into the front door outside handle frame sub-assembly, then slide the front door outside handle assembly toward the front of the vehicle to install it.
Move the lever as shown in the illustration and engage the 2 claws to lock the front door outside handle assembly.
Connect the connector.
Engage the 2 claws as shown in the illustration.
Engage the clamp.
68126

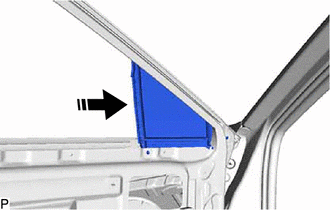

25.INSTALL FRONT DOOR FIX WINDOW GLASS
|
Install in this Direction |
Install the front door fix window glass as shown in the illustration.
67402F
26.INSTALL FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
Lift up the front door weatherstrip as shown in the illustration.
Install the front door front lower frame sub-assembly with the screw and 3 bolts.
Install the front door weatherstrip to the original position.
67404F
27.INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
Engage the guide.
Install the front door rear lower frame sub-assembly with the bolt.

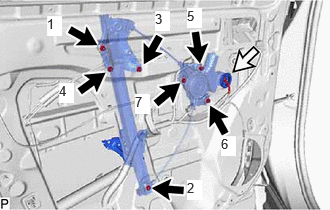

28.INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY
Apply MP grease to the sliding parts of the front door window regulator assembly.
Temporarily install the front door window regulator assembly with the 7 nuts.
Fully tighten the 7 nuts to install the front door window regulator assembly.
Tighten the nuts in the order shown in the illustration.
Connect the connector.
68151D
29.INSTALL FRONT DOOR GLASS RUN
Install the front door glass run.
67664C
30.INSTALL DOOR FRAME GARNISH
Engage the 3 claws to install the door frame garnish.
68102

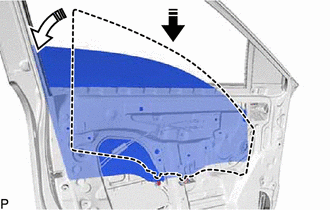

31.INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
for Driver Side:
Connect the multiplex network master switch assembly.
for Front Passenger Side:
Connect the power window regulator switch assembly.
Connect the cable to the negative (-) auxiliary battery terminal.
Turn the ignition switch to ON.
Move the front door window regulator assembly so that the door glass bolt holes can be seen.
Turn the ignition switch off.
Disconnect the cable from the negative (-) auxiliary battery terminal.
for Driver Side:
Disconnect the multiplex network master switch assembly.
for Front Passenger Side:
Disconnect the power window regulator switch assembly.
|
Install in this Direction (1) |
|
Install in this Direction (2) |
Insert the front door glass sub-assembly into the front door panel along the front door glass run as shown in the illustration.
Install the front door glass sub-assembly with the 2 bolts.
75720
32.INSTALL FRONT DOOR BELT MOULDING ASSEMBLY
33.INSTALL HOLE PLUG
Install the hole plug.
8983AA
34.INSTALL SIDE AIRBAG PRESSURE SENSOR
67832
35.INSTALL FRONT DOOR SERVICE HOLE COVER
Engage the 4 clips to install the front door service hole cover.
Engage the 2 clamps.
Connect the connector.
67831D

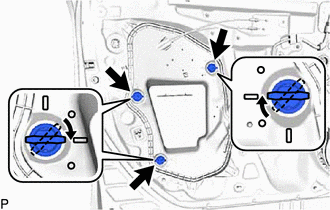

36.INSTALL FRONT DOOR SERVICE HOLE COVER CLIP
Insert the 3 front door service hole cover clips and turn them 45 degrees as shown in the illustration to install them.
68193C

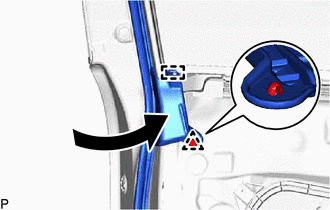

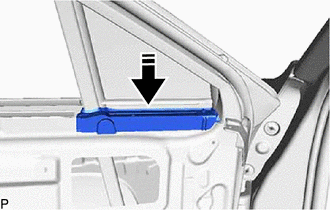

37.INSTALL FRONT DOOR FRONT BELT SEAL
|
Install in this Direction |
Install the front door front belt seal as shown in the illustration.
Engage the guide and clip to connect the front door weatherstrip as shown in the illustration.
68195B

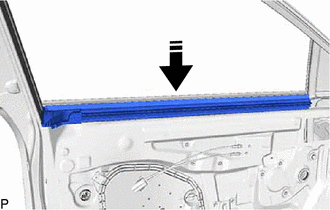

38.INSTALL FRONT DOOR REAR BELT SEAL
|
Install in this Direction |
Install the front door rear belt seal to the front door inner glass weatherstrip as shown in the illustration.
68172A

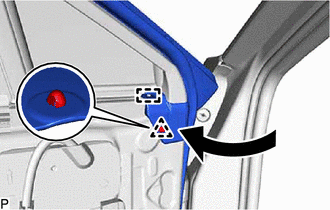

39.INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
|
Install in this Direction |
Install the front door inner glass weatherstrip with front door rear belt seal as shown in the illustration.
Engage the guide and clip to connect the front door weatherstrip as shown in the illustration.
86160
40.INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
87940
41.INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
87964
42.INSTALL OUTER MIRROR INSTALL HOLE COVER
69206B
43.INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
|
Install in this Direction |
Engage the 3 claws to install the front door inside handle sub-assembly as shown in the illustration.

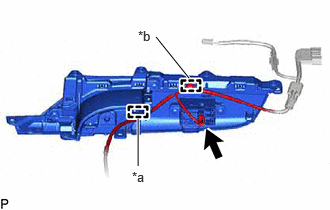

44.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
| *a | Guide |
| *b | Clamp |
Connect the connector.
Engage the clamp and guide.
Engage the 4 claws.
Install the power window regulator switch assembly with front door upper armrest base panel with the 8 screws.
45.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
| *a | Guide |
| *b | Clamp |
Connect the 2 connectors.
Engage the clamp and guide.
Engage the 4 claws.
Install the multiplex network master switch assembly with front door upper armrest base panel with the 8 screws.
67602

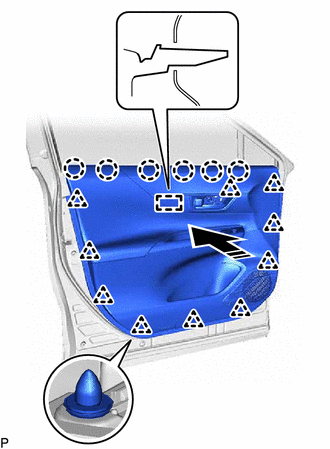

46.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Connect the connector.

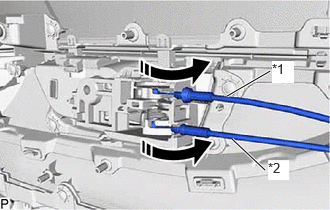

| *1 | Front Door Inside Lock/Unlock Knob Locking Cable |
| *2 | Front Door Lock Open Lever Remote Control Cable |
|
Install in this Direction |
Connect the front door lock open lever remote control cable and front door inside lock/unlock knob locking cable to the front door inside handle sub-assembly as shown in the illustration.
|
Install in this Direction |
Engage the guide, 6 claws and 10 clips as shown in the illustration.
Install the front door trim board sub-assembly with the 2 screws.
Remove the protective tape.
81230
47.INSTALL COURTESY LIGHT ASSEMBLY
74222A
48.INSTALL FRONT DOOR ARMREST COVER
Install the front door armrest cover.
69278B

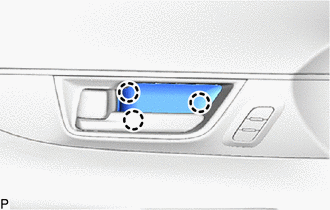

49.INSTALL FRONT DOOR INSIDE HANDLE BEZEL
Engage the 3 claws to install the front door inside handle bezel.
50.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for M20C-FKS, M20D-FKS:
for A25D-FXS, A25F-FXS:
51. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
65351A
52.INSTALL BATTERY HOLE COVER (for HV Model)
58416K
53.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)
54.INITIALIZE POWER WINDOW CONTROL SYSTEM
55.INSPECT POWER WINDOW OPERATION
56.INSPECT SRS WARNING LIGHT
