DOOR / HATCH HOOD LOCK CONTROL CABLE ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during hood lock control cable assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
Tires	· Initialization12 · Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below

PROCEDURE

Hide Display 17750A 1.REMOVE INLET AIR CLEANER ASSEMBLY

for M20C-FKS, M20D-FKS:

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202111,999999,_51,_111785,_0503267,RM100000001ZE11_01_0028,

for A25D-FXS, A25F-FXS:

Click hereEngine / Hybrid System>A25D-FXS, A25F-FXS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202111,999999,_51,_111794,_0503252,RM100000001ZDZB_01_0025,

Hide Display 53510 2.REMOVE HOOD LOCK ASSEMBLY

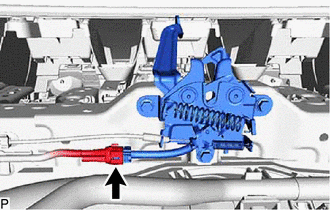

Disconnect the connector.

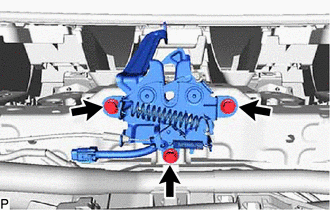

Remove the 3 bolts.

Disconnect the hood lock control cable assembly to remove the hood lock assembly.

Hide Display 67914B 3.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 4.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 5.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0006,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0006,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0006,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0006,

Hide Display 53601 6.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0112,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0112,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0112,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0112,

Hide Display 53601 7.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.

Hide Display 8.REMOVE FRONT TIRE LH

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202111,999999,_V1,_112220,_0502516,RM100000001ZAD2_01_0001,

Hide Display 53876A 9.REMOVE FRONT FENDER LINER LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT FENDER>DISASSEMBLY202111,202203,_59,_111849,_0509433,RM100000002055H_01_0014,202203,202406,_59,_111849,_0509433,RM1000000022L3A_01_0014,202406,202409,_59,_111849,_0509433,RM100000002MPZ9_01_0014,202409,999999,_59,_111849,_0509433,RM100000002OMGF_01_0014,

Hide Display 53630 10.REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

Using a screwdriver, disengage each clamp and the grommet as shown in the illustration.

0.885,1.073 0.885,0.833 true 4.177,1.552 4.177,1.313 true 1.51,1.333 1.51,1.094 true 4.969,1.75 4.802,1.552 true 4.094,1.583 4.302,1.781 0.208,0.198 10 true *1 1.417,1.344 1.635,1.563 0.219,0.219 10 true *a 4.979,1.677 5.219,1.875 0.24,0.198 10 true *b 0.813,1.083 1.021,1.281 0.208,0.198 10 true *1

*1	Hood Lock Control Cable Assembly	-	-
*a	Clamp	*b	Grommet

HINT:: Tape the screwdriver tip before use.

Pull the hood lock control cable assembly from the engine compartment to remove it.
