RM38N0EC _59 Vehicle Exterior _111831 DOOR / HATCH _0501455 HOOD A

DOOR / HATCH HOOD DISASSEMBLY

PROCEDURE

Hide Display 53341B 1.REMOVE HOOD INSULATOR

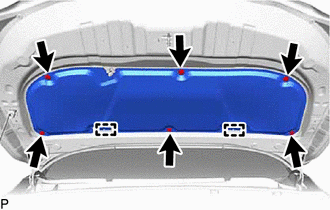

Using a clip remover, remove the 6 hood insulator clips.

Disengage the 2 guides to remove the hood insulator.

Hide Display 85035 2.REMOVE WASHER NOZZLE SUB-ASSEMBLY

Hide Display 3.DISCONNECT WASHER HOSE ASSEMBLY

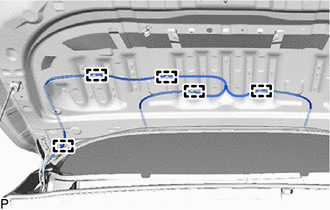

Disengage the 5 clamps and disconnect the washer hose assembly.

Hide Display 53452A 4.REMOVE HOOD STAY HOLDER

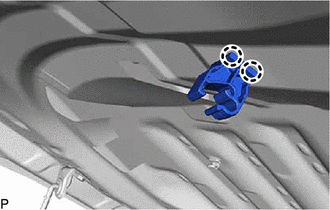

Disengage the 2 claws to remove the hood stay holder.

Hide Display 53440D 5.REMOVE HOOD SUPPORT ASSEMBLY

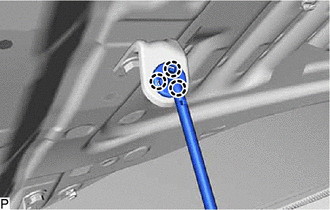

Disengage the 3 claws to remove the hood support assembly.

Hide Display 53336A 6.REMOVE HOOD STAY BRACKET

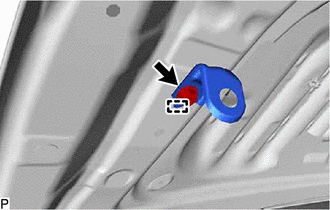

Remove the bolt.

Disengage the guide to remove the hood stay bracket.
