Vehicle Exterior
_111831
DOOR / HATCH
_0501455
HOOD
G
DOOR / HATCH HOOD ON-VEHICLE INSPECTION
PROCEDURE
53301
1.INSPECT HOOD SUB-ASSEMBLY
a.

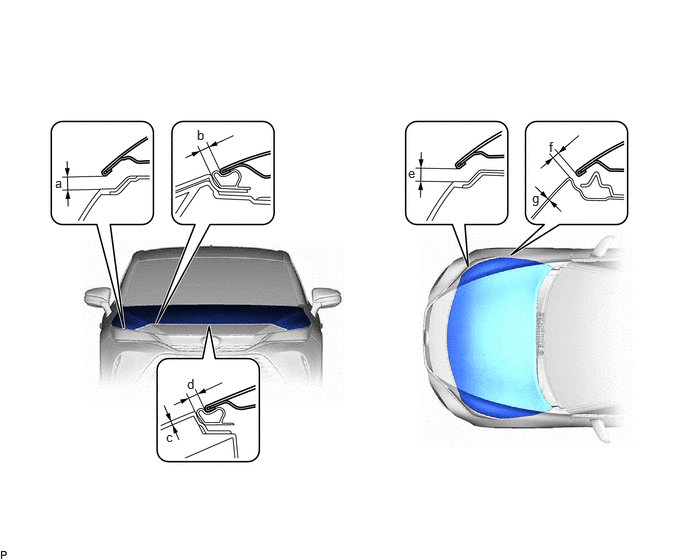

Check that the clearance measurements of areas a through g are within each standard range.
0.573,1.823 0.729,2.021
0.156,0.198
10
false
a
2.052,1.323 2.208,1.521
0.156,0.198
10
false
b
1.729,4.469 1.885,4.667
0.156,0.198
10
false
c
1.948,3.917 2.104,4.115
0.156,0.198
10
false
d
4.25,1.719 4.406,1.917
0.156,0.198
10
false
e
5.542,1.979 5.698,2.198
0.156,0.219
10
false
g
5.719,1.448 5.906,1.635
0.188,0.188
10
false
f
| Area | Measurement | Area | Measurement |
|---|---|---|---|
| a | 8.75 mm (0.344 in.) | b | 1.85 to 5.85 mm (0.0728 to 0.230 in.) |
| c | -2.0 to 2.0 mm (-0.0787 to 0.0787 in.) | d | 1.85 to 5.85 mm (0.0728 to 0.230 in.) |
| e | 8.75 mm (0.344 in.) | f | 3.1 to 6.1 mm (0.122 to 0.240 in.) |
| g | -1.5 to 1.5 mm (-0.059 to 0.059 in.) | - | - |
