INTERIOR PANELS / TRIM  ROOF SUNSHADE SWITCH  INSPECTION

0.469,0.646 0.573,0.948 true 1.135,0.948 1.063,0.656 true 1.188,1.552 1.24,1.208 true 0.146,0.104 0.458,0.302 0.313,0.198 10 false *a 0.333,0.49 0.646,0.656 0.313,0.167 10 false GND 0.896,0.51 1.229,0.719 0.333,0.208 10 false OPN 1.073,1.573 1.406,1.781 0.333,0.208 10 false CLS

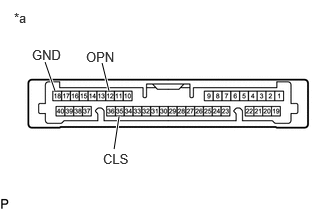

*a	Component without harness connected (Roof Sunshade Switch (Map Light Assembly))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
12 (OPN) - 18 (GND)	OPEN switch is pressed	Below 100 Ω
	OPEN switch is not pressed	1 kΩ or higher
35 (CLS) - 18 (GND)	CLOSE switch is pressed	Below 100 Ω
	CLOSE switch is not pressed	1 kΩ or higher

If the result is not as specified, replace the roof sunshade switch (map light assembly).
