RM38N0EC _58 Vehicle Interior _111835 METER / GAUGE / DISPLAY _0501288 COMBINATION METER A

METER / GAUGE / DISPLAY  COMBINATION METER  DISASSEMBLY


PROCEDURE

Hide 83138G 1.REMOVE COMBINATION METER GLASS

a.

for Optitron Meter Type:

i.

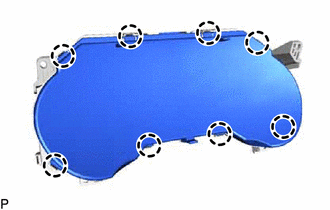

E447041

Disengage the 8 claws to remove the combination meter glass.



b.

for TFT Meter Type:

i.

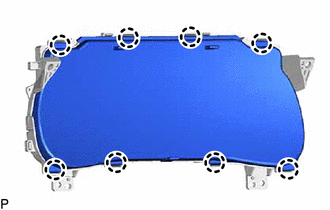

E477430

Disengage the 8 claws to remove the combination meter glass.
