THEFT DETERRENT / KEYLESS ENTRY  SECURITY HORN ASSEMBLY  INSPECTION


PROCEDURE

Hide 86510A 1.INSPECT SECURITY HORN ASSEMBLY

a.
B480842C07
0.156,0.104 0.385,0.323 0.229,0.219 10 false *a

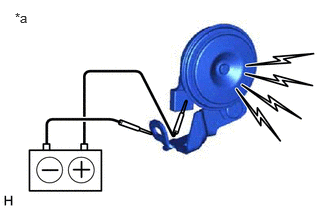

*a Component without harness connected
(Security Horn Assembly)


Check the operation of the security horn assembly.

OK:
Auxiliary Battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal 1 Security horn assembly sounds
Auxiliary battery negative (-) → Security horn assembly body


If the result is not as specified, replace the security horn assembly.
