RM38N0EC _58 Vehicle Interior _111832 THEFT DETERRENT / KEYLESS ENTRY _0501285 ENGINE HOOD COURTESY SWITCH G

THEFT DETERRENT / KEYLESS ENTRY  ENGINE HOOD COURTESY SWITCH  INSPECTION


PROCEDURE

Hide 53510 1.INSPECT ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)

a.

Measure the resistance according to the value(s) in the table below.

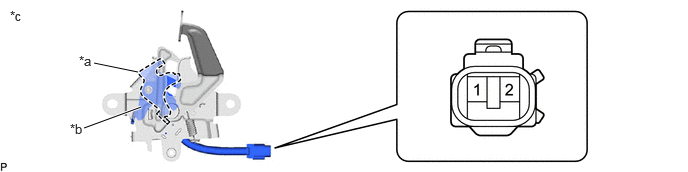

B588691C01
0.979,0.656 1.438,0.75 false 0.875,1.333 1.469,1.115 true 0.823,0.552 1.135,0.708 0.313,0.156 10 false *a 0.729,1.26 1.042,1.417 0.313,0.156 10 false *b 0.104,0.083 0.417,0.24 0.313,0.156 10 false *c
*a Open *b Lock
*c Component without harness connected
(Engine Hood Courtesy Switch (Hood Lock Assembly)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 Open 10 kΩ or higher
Locked Below 1 Ω


If the result is not as specified, replace the engine hood courtesy switch (hood lock assembly).
