RM38N0EC _58 Vehicle Interior _111839 SEAT _0501171 FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71052A 1.INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

a.

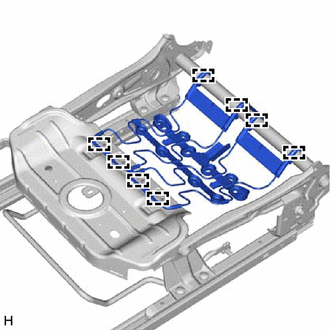

B630643

Engage the 8 hooks to install the front seat cushion spring sub-assembly.


Hide 72266 2.INSTALL SEAT TRACK UPPER RAIL COVER LH (for Front Side)

a.

Operate the seat track adjusting handle and move the front seat adjuster assembly to the foremost position.


b.

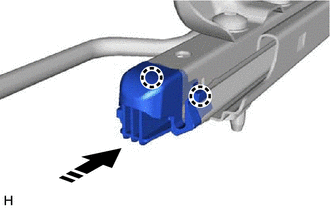

B630647
V113147

Install in this Direction


Engage the 2 claws to install the seat track upper rail cover LH as shown in the illustration.


Hide 72265E 3.INSTALL SEAT TRACK UPPER RAIL COVER RH (for Front Side)

HINT:

Use the same procedure as for the LH side.


Hide 72266C 4.INSTALL SEAT TRACK UPPER RAIL COVER LH (for Rear Side)

a.

Operate the seat track adjusting handle and move the front seat adjuster assembly to the rearmost position.


b.

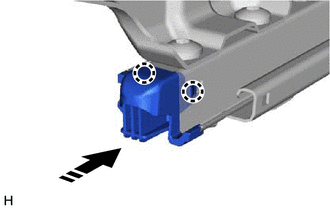

B630648
V113147

Install in this Direction


Engage the 2 claws to install the seat track upper rail cover LH as shown in the illustration.


Hide 72265E 5.INSTALL SEAT TRACK UPPER RAIL COVER RH (for Rear Side)

HINT:

Use the same procedure as for the LH side.


Hide 71072S 6.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

HINT:

When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.

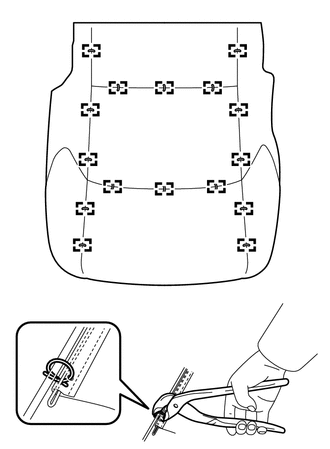

B630649

Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 13 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the separate type front seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.




Hide 7.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

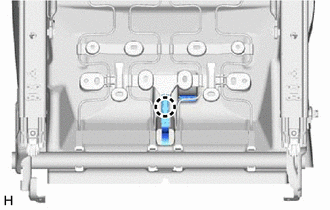

B630640

Engage the claw to install the occupant detection sensor.


b.

Engage each hook to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.

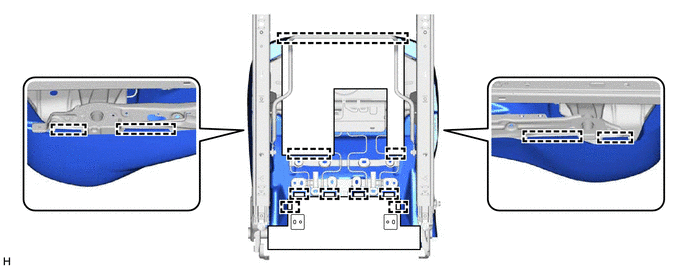

B630641


Hide 71759D 8.INSTALL FRONT NO. 2 SEATBACK HOOK

a.

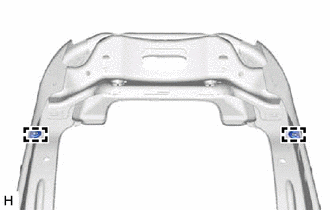

B556379

Engage the 2 clamps to install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.


Hide 71053S 9.INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY

a.

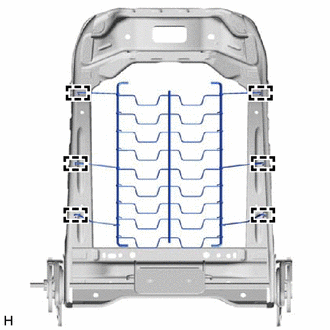

B630639

Engage the 6 hooks to install the front seatback spring sub-assembly to the front seatback frame sub-assembly.


Hide 71074S 11.INSTALL SEPARATE TYPE FRONT SEATBACK COVER

HINT:

When installing a separate type front seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>PRECAUTION


a.

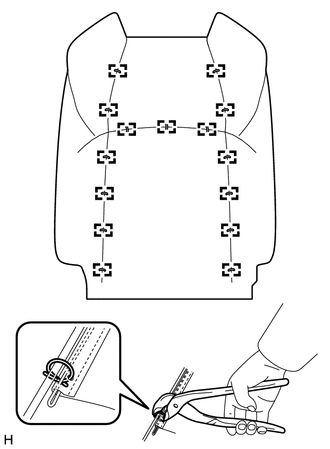

B630650

Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 15 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the separate type front seatback cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.




Hide 12.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Install the separate type front seatback cover with pad.


Hide 71931 13.INSTALL FRONT SEAT HEADREST SUPPORT

a.

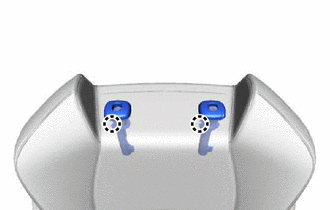

B631288

Engage the 2 claws to install the 2 front seat headrest supports.


b.

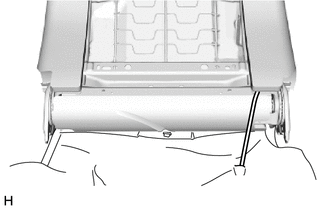

B630637

Pass the front seat airbag assembly wire harness through the hole of the separate type front seatback cover.


c.
B555783

Engage the hook.


d.
B429322

Close the 2 fasteners.


Hide 71875A 14.INSTALL RECLINING ADJUSTER INSIDE COVER RH

a.

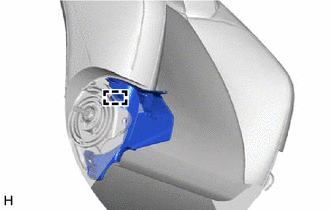

B630635

Engage the guide and install the reclining adjuster inside cover RH to the separate type front seatback assembly.


Hide 15.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

Engage the guide.

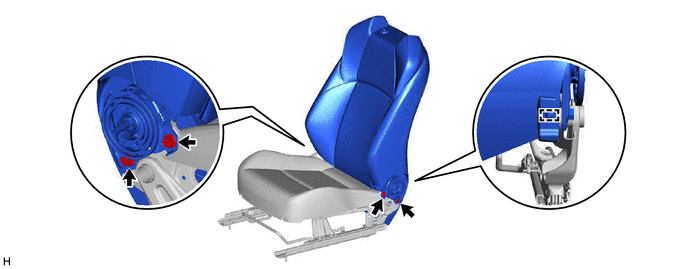

B630634


b.

Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.

Torque:
45 N*m (459 kgf*cm, 33 ft.*lbf)


c.

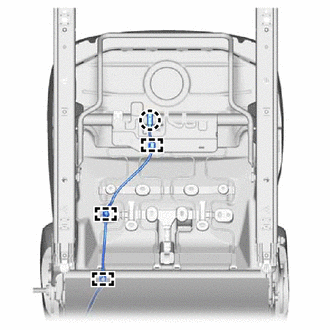

B630633

Engage the claw and 3 clamps to install the front seat airbag assembly wire harness.

HINT:

Engage the claw first.



d.
B630632

Engage the hook.


Hide 71876F 16.INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER

a.
B630631

Engage the 2 claws and install the RH seat reclining adjuster inside cover to the front seat inner cushion shield.


Hide 71861 17.INSTALL FRONT SEAT INNER CUSHION SHIELD

a.

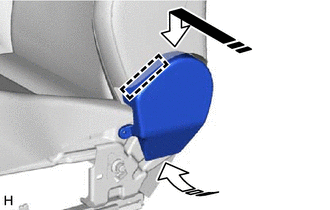

B630651
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide as shown in the illustration.


b.
B630629

Install the front seat inner cushion shield with the 2 screws.


Hide 71811D 18.INSTALL FRONT SEAT CUSHION SHIELD

a.

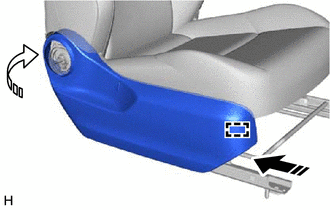

B630652
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the guide as shown in the illustration.


b.
B630653

Engage the 5 claws.


c.

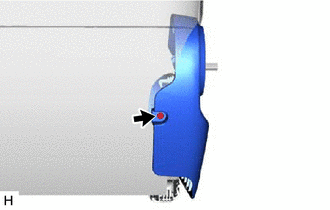

B630625

Install the front seat cushion shield with the screw.


Hide 72525A 19.INSTALL RECLINING ADJUSTER RELEASE HANDLE

a.

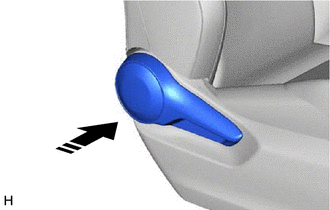

B630654
V113147

Install in this Direction


Install the reclining adjuster release handle as shown in the illustration.


Hide 20.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

a.

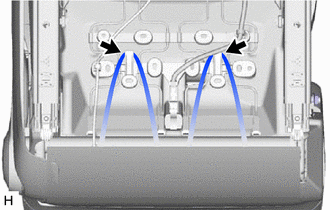

B630623

Connect the 2 rubber bands of the separate type front seatback cover.
