SEAT FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 73230 1.REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)>REMOVAL202111,202203,_58,_111840,_0501511,RM100000001Z6H3_02_0046,202203,202303,_58,_111840,_0501511,RM1000000022GGC_02_0046,202303,202406,_58,_111840,_0501511,RM100000002BICJ_02_0046,202406,999999,_58,_111840,_0501511,RM100000002MX0T_02_0046,

Hide Display 2.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Disconnect the 2 rubber bands of the separate type front seatback cover.

Hide Display 72525A 3.REMOVE RECLINING ADJUSTER RELEASE HANDLE

0,0 0,0 false

Remove in this Direction

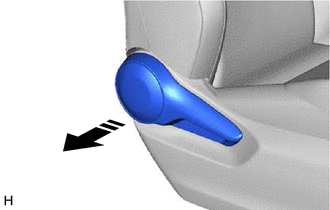

Remove the reclining adjuster release handle as shown in the illustration.

Hide Display 71811D 4.REMOVE FRONT SEAT CUSHION SHIELD

Remove the screw.

Disengage the 3 claws.

2.573,2.604 2.875,2.375 true 2.854,2.271 3.167,2.469 0.313,0.198 10 true *a

*a	Protective Tape
	Remove in this Direction

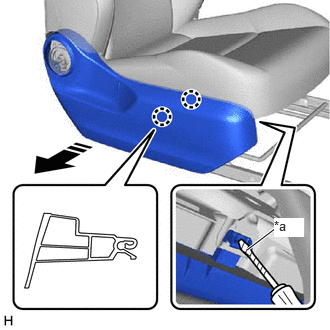

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

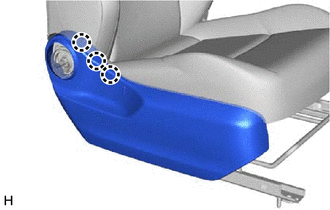

Disengage the guide to remove the front seat cushion shield as shown in the illustration.

Hide Display 71861 5.REMOVE FRONT SEAT INNER CUSHION SHIELD

Remove the 2 screws.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

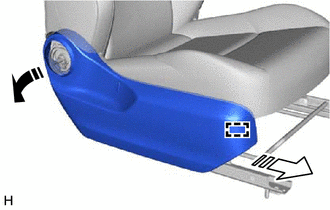

Disengage the guide to remove the front seat inner cushion shield as shown in the illustration.

Hide Display 71876F 6.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

Disengage the 2 claws and remove the RH seat reclining adjuster inside cover from the front seat inner cushion shield.

Hide Display 7.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Disengage the hook.

Disengage the claw and 3 clamps to separate the front seat airbag assembly wire harness.

HINT:: Disengage the 3 clamps first.

Remove the 4 bolts.

Disengage the guide and remove the separate type front seatback assembly from the separate type front seat cushion assembly.

HINT:: Remove the RH seat reclining adjuster inside cover RH together with the separate type front seatback assembly.

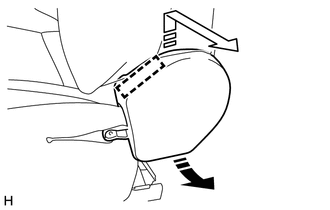

Hide Display 71875A 8.REMOVE RECLINING ADJUSTER INSIDE COVER RH

Disengage the guide to remove the reclining adjuster inside cover RH from the separate type front seatback assembly.

Hide Display 71931 9.REMOVE FRONT SEAT HEADREST SUPPORT

Open the 2 fasteners.

Disengage the hook.

Pass the front seat airbag assembly wire harness through the hole of the separate type front seatback cover.

1.802,0.875 2.615,0.875 false 1.885,0.969 2.354,0.635 true 2.375,0.531 2.688,0.688 0.313,0.156 10 false *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the 2 front seat headrest supports.

Hide Display 10.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Remove the separate type front seatback cover with pad.

Hide Display 71074S 11.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

Remove the 15 hog rings to remove the separate type front seatback cover from the separate type front seatback pad.

Hide Display 73920A 12.REMOVE FRONT SEAT AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for SFTM Made)>REMOVAL202111,202203,_58,_111838,_0502525,RM100000001ZAE2_01_0005,202203,202303,_58,_111838,_0502525,RM1000000022FI2_01_0005,202303,202406,_58,_111838,_0502525,RM100000002AQNR_01_0005,202406,999999,_58,_111838,_0502525,RM100000002MS88_01_0005,

Hide Display 71053S 13.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY

Disengage the 6 hooks to remove the front seatback spring sub-assembly from the front seatback frame sub-assembly.

Hide Display 71759D 14.REMOVE FRONT NO. 2 SEATBACK HOOK

Disengage the 2 clamps to remove the 2 front No. 2 seatback hooks from the front seatback frame sub-assembly.

Hide Display 15.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

Disengage each hook and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.

Disengage the claw to separate the occupant detection sensor.

Hide Display 71072S 16.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Remove the 16 hog rings and remove the separate type front seat cushion cover from the separate type front seat cushion pad.

Hide Display 72266C 17.REMOVE SEAT TRACK UPPER RAIL COVER LH (for Rear Side)

Operate the seat track adjusting handle and move the front seat adjuster assembly to the rearmost position.

0,0 0,0 false

Remove in this Direction

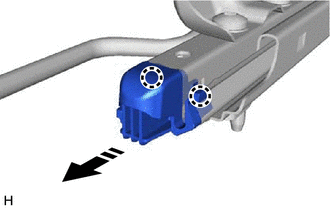

Disengage the 2 claws to remove the seat track upper rail cover LH as shown in the illustration.

Hide Display 72265 18.REMOVE SEAT TRACK UPPER RAIL COVER RH (for Rear Side)

HINT:: Use the same procedure as for the LH side.

Hide Display 72266 19.REMOVE SEAT TRACK UPPER RAIL COVER LH (for Front Side)

Operate the seat track adjusting handle and move the front seat adjuster assembly to the foremost position.

0,0 0,0 false

Remove in this Direction

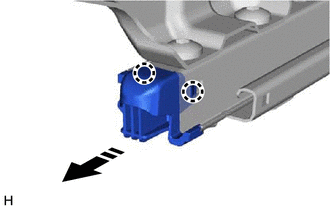

Disengage the 2 claws to remove the seat track upper rail cover LH as shown in the illustration.

Hide Display 72265E 20.REMOVE SEAT TRACK UPPER RAIL COVER RH (for Front Side)

HINT:: Use the same procedure as for the LH side.

Hide Display 71052A 21.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

Disengage the 8 hooks to remove the front seat cushion spring sub-assembly.
