RM38N0EC _58 Vehicle Interior _111843 INTERIOR PANELS / TRIM _0501136 FRONT CONSOLE BOX A

INTERIOR PANELS / TRIM FRONT CONSOLE BOX DISASSEMBLY

PROCEDURE

Hide Display 1.REMOVE CONNECTOR BRACKET (w/o Illumination)

a.

B587105

Disengage the clamp to remove the connector bracket.

Hide Display 81080K 2.REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY (w/ Illumination)

Click hereVehicle Interior>LIGHTING (INT)>AMBIENT LIGHT>REMOVAL202111,999999,_58,_111833,_0499882,RM100000001Z0J4_01_0048,

Hide Display 58861A 3.REMOVE NO. 1 CONSOLE BOX SUPPORT

a.

B588819

Remove the 4 screws.

b.

B588826

Disengage the clip, 3 claws and 5 guides to remove the No. 1 console box support.

Hide Display 58862C 4.REMOVE NO. 2 CONSOLE BOX SUPPORT

a.

B588827

Remove the 4 screws.

b.

B588828

Disengage the clip, 3 claws and 5 guides to remove the No. 2 console box support.

Hide Display 58827A 5.REMOVE CONSOLE BOX POCKET GARNISH

a.

B588943

Disengage the 10 claws to remove the console box pocket garnish.

Hide Display 55620 6.REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY

a.

B587106

Remove the 6 screws.

b.

B587107

Disengage the 2 guides to remove the instrument panel cup holder assembly.

Hide Display 58805C 7.REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

a.

B587108

Disengage the 8 clips and 2 guides to remove the rear upper console panel sub-assembly.

Hide Display 58913A 8.REMOVE NO. 3 BOX PANEL

a.

B587111

Disengage the 2 clips, 2 claws and 3 guides to remove the No. 3 box panel.

Hide Display 85530 9.REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

Click hereVehicle Interior>POWER OUTLETS (INT)>POWER OUTLET SOCKET (for Console Box Front Side)>REMOVAL202111,999999,_58,_111842,_0500720,RM100000001Z374_01_0015,

Hide Display 85535B 10.REMOVE NO. 1 POWER OUTLET SOCKET COVER

Click hereVehicle Interior>POWER OUTLETS (INT)>POWER OUTLET SOCKET (for Console Box Front Side)>REMOVAL202111,999999,_58,_111842,_0500720,RM100000001Z374_01_0029,

Hide Display 58862F 11.REMOVE NO. 2 CONSOLE BOX DUCT

a.

B587112

Remove the clip.

b.

Disengage the guide to remove the No. 2 console box duct.

Hide Display 58989A 12.REMOVE CONSOLE BOX RETAINER

a.

B587113

Disengage the 6 claws to remove the console box retainer.

Hide Display 58912C 13.REMOVE NO. 2 BOX SIDE PANEL

a.

Disengage the 6 claws to remove the No. 2 box side panel.

B587114

Hide Display 58911A 14.REMOVE NO. 1 BOX SIDE PANEL

a.

Disengage the 6 claws to remove the No. 1 box side panel.

B587115

Hide Display 58819C 15.REMOVE FRONT CONSOLE BOX FILLER

a.

B639660

Remove the front console box filler.

Hide Display 58864C 16.REMOVE NO. 4 CONSOLE BOX DUCT

a.

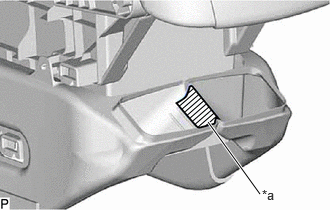

B587119C01

2.708,2.021 2.167,1.271 true 2.729,1.948 2.938,2.125 0.208,0.177 10 false *a

*a	Nonwoven Tape

Remove the nonwoven tape.

b.

B587121

Disengage the 2 guides to remove the No. 4 console box duct.

Hide Display 58863C 17.REMOVE NO. 3 CONSOLE BOX DUCT

a.

B587122

Disengage the 2 guides to remove the No. 3 console box duct.

Hide Display 58905 18.REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

a.

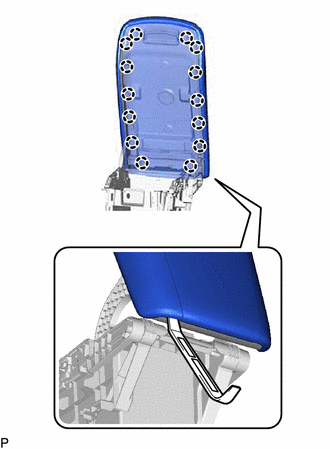

B587123

Using a moulding remover, disengage the 14 claws to remove the console compartment door sub-assembly.

Hide Display 19.REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

a.

Disengage the 6 claws to remove the console compartment door lock sub-assembly.

B718695
