BRAKE SYSTEM (OTHER)  BRAKE BOOSTER PUMP  DISPOSAL

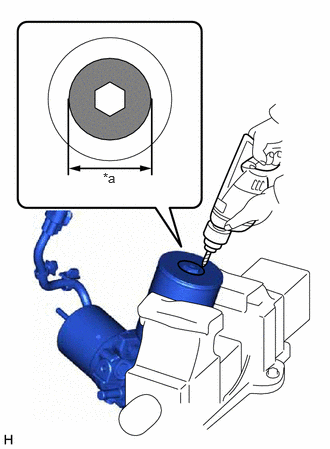

1.073,1.771 1.385,1.969 0.313,0.198 10 false *a

*a	30 mm (1.18 in.)
	Area (A)

Using a drill, slowly drill a hole approximately 12 mm (0.472 in.) deep indicated by the area (A) in the illustration to discharge the gas inside.

CAUTION:

Make sure to wear safety glasses as brake fluid and shards of metal may be ejected due to the release of pressurized gas.

NOTICE:

·

Make sure to sufficiently secure the pump or accumulator of the brake booster with accumulator pump assembly before performing this procedure.

·

Make sure to drill the hole slowly so that pressurized gas will not be released rapidly.

HINT:

·

Nitrogen gas, which is colorless, odorless and harmless, will be discharged.

·

The recommended drill bit diameter is 6 mm (0.236 in.) or less.
