RM38N0EC _54 Brake _111815 BRAKE SYSTEM (OTHER) _0500821 BRAKE BOOSTER PUMP A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER PUMP  INSTALLATION


PROCEDURE

Hide 47942 1.INSTALL NO. 2 BRAKE POWER SUPPLY BRACKET

HINT:

Perform this procedure only when replacement of the No. 2 brake power supply bracket is necessary.


a.

Using a 5 mm long hexagon socket wrench, install the No. 2 brake power supply bracket with the 2 bolts.

Torque:
6.6 N*m (67 kgf*cm, 58 in.*lbf)


Hide 47941A 2.INSTALL NO. 1 BRAKE POWER SUPPLY BRACKET

HINT:

Perform this procedure only when replacement of the No. 1 brake power supply bracket is necessary.


a.

Using a 5 mm long hexagon socket wrench, install the No. 1 brake power supply bracket with the 2 bolts.

Torque:
6.6 N*m (67 kgf*cm, 58 in.*lbf)


Hide 47759E 3.INSTALL NO. 2 WIRE CLAMP BRACKET

HINT:

Perform this procedure only when replacement of the No. 2 wire clamp bracket is necessary.


a.

Using a 5 mm long hexagon socket wrench, install the No. 2 wire clamp bracket with the bolt.

Torque:
6.6 N*m (67 kgf*cm, 58 in.*lbf)


Hide 47070B 4.INSTALL BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY

a.

Temporarily install the brake booster with accumulator pump assembly, brake booster pump bushing and brake actuator case collar with the nut to the brake booster with master cylinder assembly as shown in the illustration.

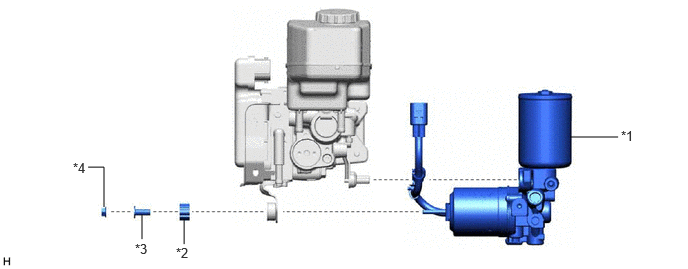

C438546C01
5.938,1.427 6.438,1.427 false 1.479,2.24 1.479,2.49 false 1.083,2.156 1.083,1.74 1.083,1.74 0.917,1.74 false 1.917,2.292 1.917,2.542 false 6.469,1.333 6.948,1.615 0.479,0.281 10 false *1 1.833,2.552 2.146,2.75 0.313,0.198 10 false *2 1.406,2.51 1.719,2.708 0.313,0.198 10 false *3 0.76,1.667 1.156,1.917 0.396,0.25 10 false *4
*1 Brake Booster with Accumulator Pump Assembly *2 Brake Booster Pump Bushing
*3 Brake Actuator Case Collar *4 Nut



b.

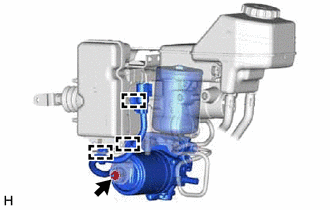

C438545

Fully tighten the nut and engage the 3 clamps.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


c.

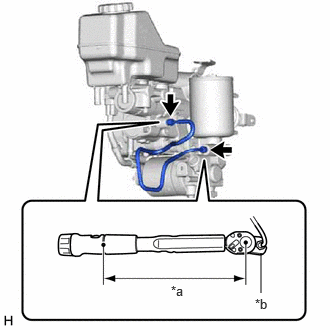

C433651C01
2.719,3.052 2.719,2.635 false 1.781,2.948 2.281,3.208 0.5,0.26 10 false *a 2.656,3.083 3.01,3.302 0.354,0.219 10 false *b
*a Torque Wrench Fulcrum Length
*b Union Nut Wrench


Using a union nut wrench, install the brake actuator tube.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.4 N*m (137 kgf*cm, 10 ft.*lbf)




d.

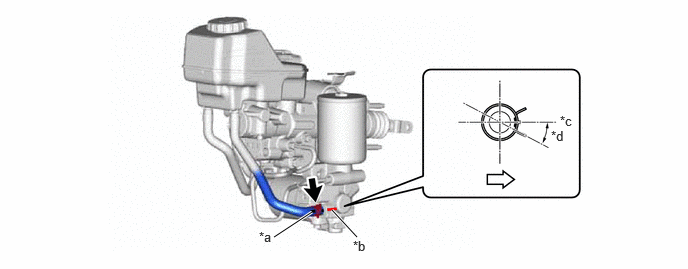

Connect the No. 2 reservoir hose to the brake booster with accumulator pump assembly and slide the clip to secure it.

C438547C01
3.458,2.188 3.719,2.469 true 3.25,2.208 2.854,2.469 true 2.698,2.385 3.021,2.563 0.323,0.177 10 false *a 5.74,1.333 6.135,1.635 0.396,0.302 10 false *d 5.833,1.177 6.135,1.448 0.302,0.271 10 false *c 3.677,2.479 4,2.656 0.323,0.177 10 false *b
*a Paint Mark *b Rib
*c Center of Rib *d within 45°
V100136

Left Side of the Vehicle - -


NOTICE:
·

Make sure to align the paint mark of the reservoir hose with the rib.

·

Install the clip within the range shown in the illustration.
