BRAKE SYSTEM (OTHER)  VACUUM PUMP(for M20 Series Engine, BOSCH Made)  COMPONENTS

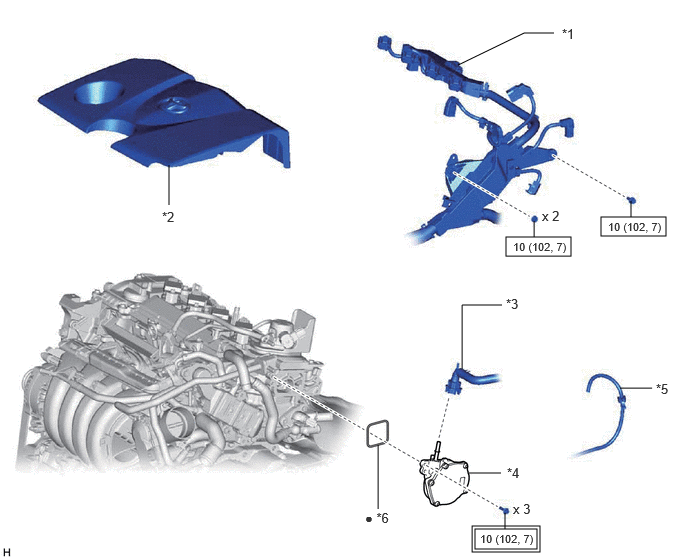

ILLUSTRATION

5.271,2.469 5.948,2.667 0.677,0.198 4.948,5.51 5.594,5.719 0.646,0.208 4.917,5.479 5.625,5.75 0.708,0.271 6.26,2.26 6.938,2.458 0.677,0.198 4.771,0.677 5.458,0.344 5.458,0.344 5.771,0.344 false 3.938,5.302 3.938,4.635 false 4.885,4.927 5.219,4.927 false 5.26,5.344 5.26,5.51 false 6.458,4.042 6.792,4.042 false 4.813,3.844 4.813,3.177 4.813,3.177 5.229,3.177 false 1.76,2.135 1.76,1.719 false 5.563,2.302 5.563,2.469 false 6.573,2.094 6.573,2.26 false 5.854,0.271 6.354,0.594 0.5,0.323 10 false *1 1.688,2.177 2.104,2.51 0.417,0.333 10 false *2 5.271,3.083 5.594,3.313 0.323,0.229 10 false *3 5.281,4.844 5.698,5.083 0.417,0.24 10 false *4 5,5.542 5.75,5.708 0.75,0.167 8 false 10 (102, 7) 6.833,3.969 7.156,4.219 0.323,0.25 10 false *5 5.344,5.219 5.76,5.552 0.417,0.333 10 false x 3 3.802,5.313 4.219,5.646 0.417,0.333 10 false ● *6 5.344,2.5 6.094,2.667 0.75,0.167 8 false 10 (102, 7) 5.646,2.167 6.063,2.5 0.417,0.333 10 false x 2 6.333,2.292 7.083,2.458 0.75,0.167 8 false 10 (102, 7)

*1	ENGINE WIRE	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
*3	NO.1 VACUUM HOSE CONNECTOR	*4	VACUUM PUMP ASSEMBLY
*5	VACUUM HOSE	*6	NO. 1 VACUUM PUMP O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		N*m (kgf*cm, ft.*lbf): Specified torque
●	Non-reusable part	-	-
