RM38N0EC _54 Brake _111815 BRAKE SYSTEM (OTHER) _0500820 BRAKE BOOSTER(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for Gasoline Model)  REASSEMBLY


PROCEDURE

Hide 44730 1.INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

a.

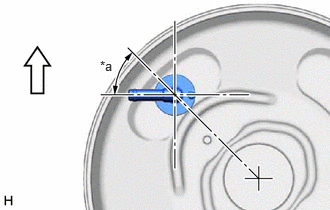

C409048C02
1.042,0.604 1.229,0.771 0.188,0.167 10 false *a
*a 45°+/- 20°
V100136

Up


Install a new grommet to the brake booster assembly.


b.

Install the brake vacuum check valve assembly to the brake booster assembly as shown in the illustration.


Hide 89420H 2.INSTALL VACUUM SENSOR ASSEMBLY

a.

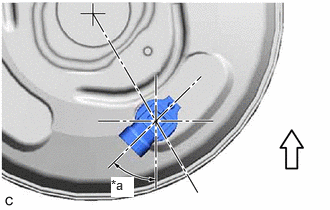

C468810C01
1.156,1.844 1.396,2.052 0.24,0.208 10 true *a
*a 45°
V100136

Up


Install a new grommet to the brake booster assembly.


b.

Install the vacuum sensor assembly to the brake booster assembly as shown in the illustration.
