BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for Gasoline Model)  DISASSEMBLY


PROCEDURE

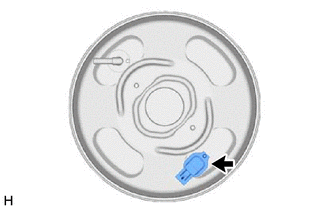

Hide 89420H 1.REMOVE VACUUM SENSOR ASSEMBLY

a.
C468808

Remove the vacuum sensor assembly from the brake booster assembly.


b.

Remove the grommet from the brake booster assembly.


Hide 44730 2.REMOVE BRAKE VACUUM CHECK VALVE ASSEMBLY

a.
C468809

Remove the brake vacuum check valve assembly from the brake booster assembly.


b.

Remove the grommet from the brake booster assembly.
