WIPER / WASHER  RELAY  ON-VEHICLE INSPECTION

2.094,0.76 2.323,0.76 false 2.885,0.76 3.115,0.76 false 2.781,1.115 3.115,1.115 false 2.792,1.563 3.115,1.563 false 1.969,0.698 2.219,0.938 0.25,0.24 10 false 1 3.167,1.063 3.333,1.24 0.167,0.177 10 false 5 3.167,1.49 3.323,1.708 0.156,0.219 10 false 3 3.146,0.688 3.354,0.917 0.208,0.229 10 false 2 0.156,0.115 0.469,0.313 0.313,0.198 10 false *a

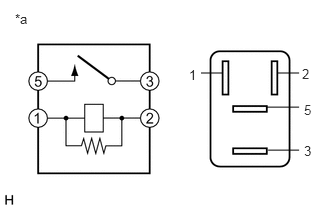

*a	Component without harness connected (WIPER Relay)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the WIPER relay.
