WIPER / WASHER  RAIN SENSOR  REMOVAL


PROCEDURE

Hide 89943 1.REMOVE RAIN SENSOR COVER

a.

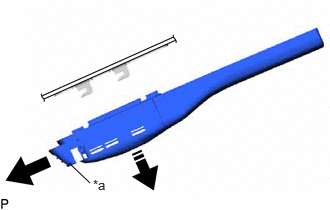

E448765C01
0.719,1.698 0.938,1.906 false 0.969,1.844 1.281,2.042 0.313,0.198 10 false *a
*a Stopper
V100135

Release
V113147

Remove in this Direction


Release the stopper by pulling it out as shown in the illustration.


b.

Disconnect the rain sensor with rain sensor cover from the windshield glass as shown in the illustration.


c.
E448766

Disengage the 2 claws and guide to remove the rain sensor cover.


Hide 89941 2.REMOVE RAIN SENSOR

a.
E448767

Disconnect the connector to remove the rain sensor.
