RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500799 RAIN SENSOR A

WIPER / WASHER  RAIN SENSOR  INSTALLATION


PROCEDURE

Hide 89944 1.INSTALL RAIN SENSOR TAPE

HINT:

The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign matter.


a.

Remove the rain sensor tape.


b.

Clean the rain sensor sensing portion with a piece of cloth.


c.

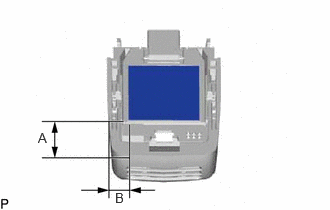

E448769N01
0.396,1.354 0.552,1.552 0.156,0.198 10 false A 1.198,1.979 1.354,2.177 0.156,0.198 10 false B

Peel off the smaller release sheet, and then attach the rain sensor tape to the rain sensor sensing portion as shown in the illustration.

HINT:

Use your fingers to push out any air bubbles from under the tape.


Standard Clearance
Area Measurement
A 21.8 mm (0.858 in.)
B 7.25 mm (0.285 in.)


Hide 89941 2.INSTALL RAIN SENSOR

a.

Clean the windshield glass with a piece of cloth.

NOTICE:
·

Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.

·

If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.




b.

When installing a new rain sensor or when the rain sensor tape has been replaced:

i.

Peel off the release sheet.

HINT:

Do not touch the silicone surface.




c.

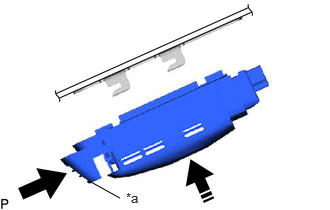

E448770C01
0.948,1.896 1.25,2.063 false 1.313,1.979 1.625,2.177 0.313,0.198 10 false *a
*a Stopper
V100135

Lock
V113147

Install in this Direction


Gradually attach the rain sensor to the windshield glass surface in the direction indicated by the arrow shown in the illustration to prevent air bubbles from forming between them.

HINT:

Do not touch the silicone or glass surfaces.



d.

Push in the stopper to install the rain sensor as shown in the illustration.


e.

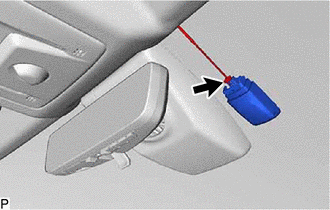

E474562

Connect the connector.


Hide 89943 3.INSTALL RAIN SENSOR COVER

a.

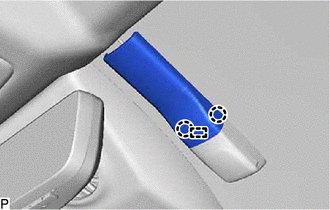

E474563

Engage the guide and 2 claws to install the rain sensor cover.
