RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500795 WASHER NOZZLE(for Front Side) A

WIPER / WASHER WASHER NOZZLE(for Front Side) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 85035 1.INSTALL WASHER NOZZLE SUB-ASSEMBLY

Connect a new washer nozzle sub-assembly to the washer hose.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

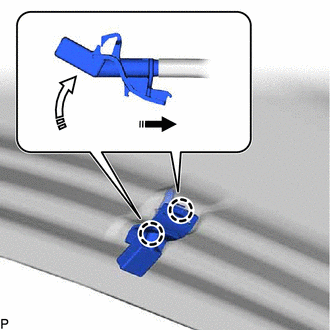

Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.

Hide Display 85035 2.INSPECT WASHER NOZZLE SUB-ASSEMBLY

Hide Display 85035 3.ADJUST WASHER NOZZLE SUB-ASSEMBLY
