RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500795 WASHER NOZZLE(for Front Side) A

WIPER / WASHER  WASHER NOZZLE(for Front Side)  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 85035 1.REMOVE WASHER NOZZLE SUB-ASSEMBLY

a.
E448756C01
2.198,2.563 2.198,2.146 true 2.115,2.573 2.344,2.771 0.229,0.198 10 true *a
*a Protective Tape
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

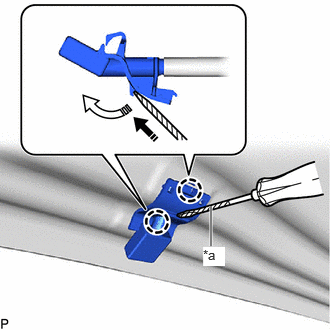

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration to separate the washer nozzle sub-assembly.

NOTICE:

Be careful not to damage the windshield glass.



b.
E474554

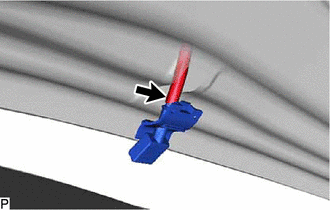

Disconnect the washer hose to remove the washer nozzle sub-assembly.

NOTICE:

Washer nozzle sub-assemblies cannot be reused.
