RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500793 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  REMOVAL


PROCEDURE

Hide 45287 1.REMOVE LOWER STEERING COLUMN COVER

NOTICE:

Removing the lower steering column cover in the incorrect order will cause the parts to break.


a.

Release the tilt and telescopic lever and fully extend and lower the steering column sub-assembly.


b.

Lock the tilt and telescopic lever.


c.

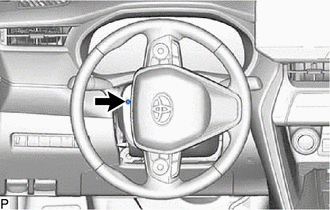

E474540

Turn the steering wheel assembly to the left and remove the screw.


d.

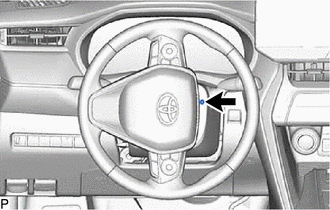

E474541

Turn the steering wheel assembly to the right and remove the screw.


e.

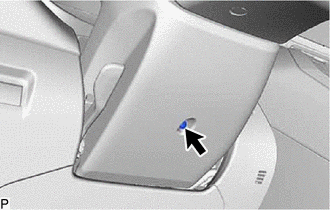

E474542

Remove the screw.


f.

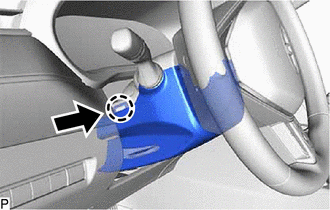

E474543C01
0,0 0,0 false
V100135

Push


Push the left side of the lower steering column cover and disengage the claw as shown in the illustration.


g.

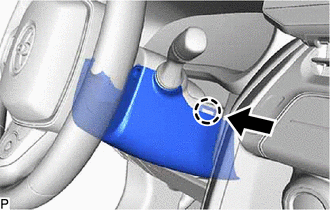

E474544C01
0,0 0,0 false
V100135

Push


Push the right side of the lower steering column cover and disengage the claw as shown in the illustration to remove the lower steering column cover.


Hide 45286B 2.REMOVE UPPER STEERING COLUMN COVER

a.

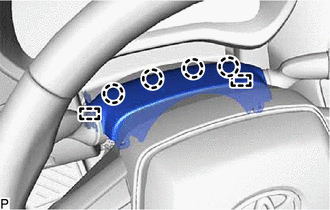

E474545

Disengage the 4 claws and 2 guides to separate the instrument cluster finish panel assembly from the upper steering column cover.


b.

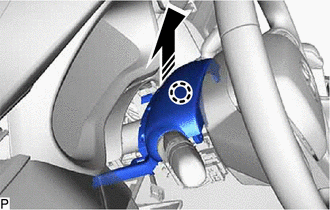

E474546C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw to remove the upper steering column cover as shown in the illustration.


Hide 84650 3.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

a.

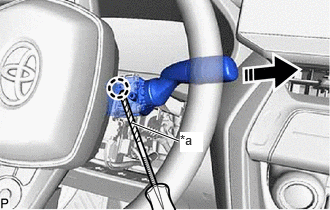

E474547C01
1.375,1.281 1.865,1.469 true 1.875,1.375 2.115,1.583 0.24,0.208 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

NOTICE:

If the claw is pulled with excessive force, it may break.
