RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500793 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  INSTALLATION


PROCEDURE

Hide 84650 1.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

a.

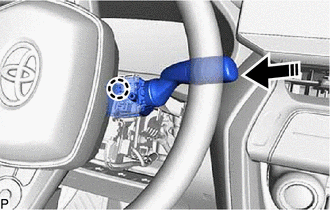

E474548C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the windshield wiper switch assembly as shown in the illustration.


Hide 45286B 2.INSTALL UPPER STEERING COLUMN COVER

a.

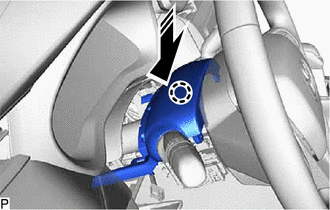

E474549C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the upper steering column cover as shown in the illustration.


b.

Engage the 4 claws and 2 guides to connect the instrument cluster finish panel assembly to the upper steering column cover.


Hide 45287 3.INSTALL LOWER STEERING COLUMN COVER

NOTICE:

If the lower steering column cover is installed in the incorrect order, the parts may break.


a.

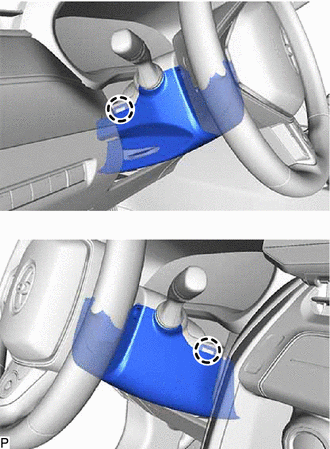

E474550

Engage the 2 claws.


b.

Install the screw.


c.

Turn the steering wheel assembly to the left and install the screw.


d.

Turn the steering wheel assembly to the right and install the lower steering column cover with the screw.
