WIPER / WASHER  REAR WIPER MOTOR  INSPECTION

1.094,1.333 0.917,1.802 true 1.542,1.813 1.406,1.333 true 1.708,1.323 1.99,1.781 true 0.156,0.167 0.469,0.365 0.313,0.198 10 false *a 1.948,1.823 2.26,2.021 0.313,0.198 10 false LS 0.875,1.844 1.188,2.042 0.313,0.198 10 false E 1.5,1.844 1.813,2.042 0.313,0.198 10 false + B

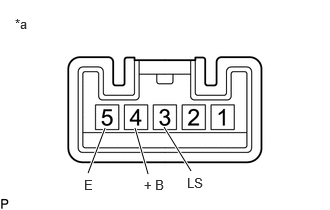

*a	Component without harness connected (Rear Wiper Motor Assembly)

Apply auxiliary battery voltage to the rear wiper motor assembly and check the wiper operation.

OK:

Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 4 (+B) Auxiliary battery negative (-) → Terminal 3 (LS) Auxiliary battery negative (-) → Terminal 5 (E)	Motor operates

If the result is not as specified, replace the rear wiper motor assembly.
