WIPER / WASHER  REAR WIPER MOTOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85110R 1.INSPECT REAR WIPER MOTOR ASSEMBLY

a.

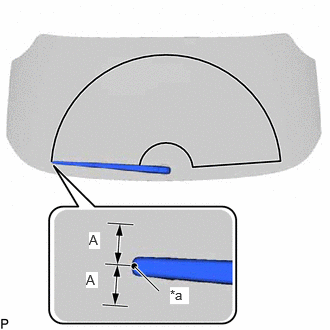

E441780C01
1.406,2.781 1.656,3.031 true 0.927,2.417 1.042,2.594 0.115,0.177 10 true A 1.771,2.99 1.969,3.167 0.198,0.177 10 true *a 0.896,2.833 1.021,3 0.125,0.167 10 true A
*a Alignment Mark


Operate the rear wiper motor assembly.


b.

Stop the rear wiper motor assembly operation.


c.

Check the automatic stop position.

HINT:

After the rear wiper motor is stopped, check the automatic stop position after lifting the rear wiper blade 2 times.


Standard Clearance:
Area Measurement
A 10 mm (0.394 in.)


OK:

The rear wiper stops at the position shown in the illustration.
