WIPER / WASHER  FRONT WIPER MOTOR  INSTALLATION

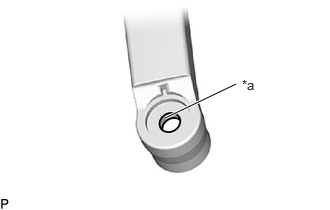

1.031,1.531 1.427,0.917 true 0.948,1.563 1.26,1.76 0.313,0.198 10 false *a

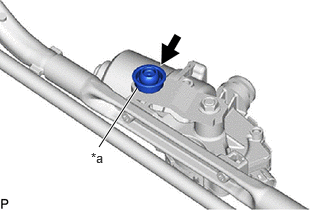

*a	Pivot of Windshield Wiper Motor Assembly

Apply MP grease to the pivot of the windshield wiper motor assembly.

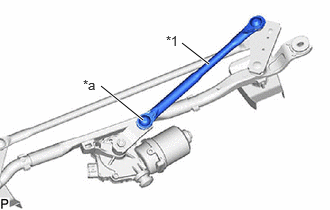

1.896,0.448 2.177,0.667 true 1.052,0.896 1.49,1.25 true 0.865,0.802 1.177,1 0.313,0.198 10 false *a 1.729,0.344 2.042,0.542 0.313,0.198 10 false *1

*1	No. 1 Wiper Link Rod
*a	Pivot of Windshield Wiper Motor Assembly

Connect the No. 1 wiper link rod to the pivot of the windshield wiper motor assembly.

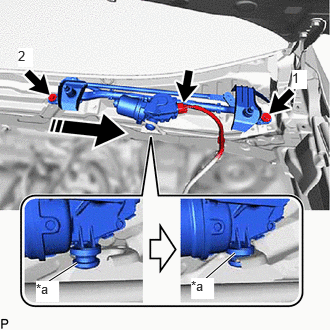

0.802,2.74 0.51,2.927 true 2.448,2.635 2.135,2.906 true 0.375,2.927 0.615,3.146 0.24,0.219 10 true *a 1.99,2.896 2.229,3.115 0.24,0.219 10 true *a 3.042,0.729 3.198,0.927 0.156,0.198 10 true 1 0.188,0.5 0.344,0.698 0.156,0.198 10 true 2

*a	Motor Grommet

Engage the motor grommet as shown in the illustration.

NOTICE:

Be careful not to damage the windshield glass when installing the windshield wiper motor and link assembly.

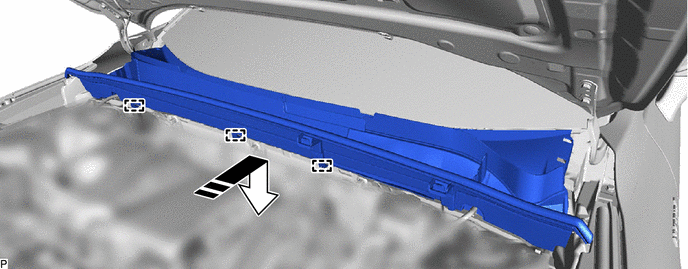

Engage the 3 guides as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

NOTICE:

Make sure that the cowl top ventilator louver sub-assembly does not contact the vehicle body, otherwise it may be damaged.

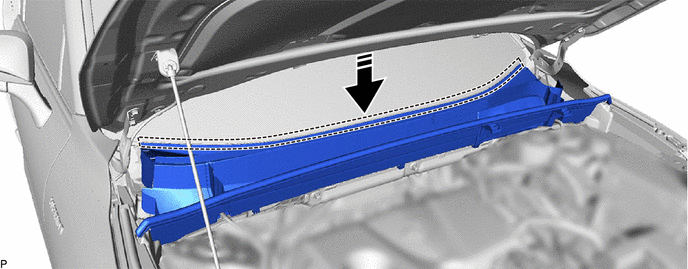

Engage the cowl top ventilator louver sub-assembly to the windshield glass as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

NOTICE:

Make sure to engage the guide securely, otherwise the cowl top ventilator louver sub-assembly may pop up when engaging it to the windshield glass.

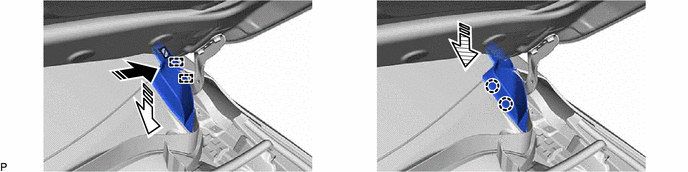

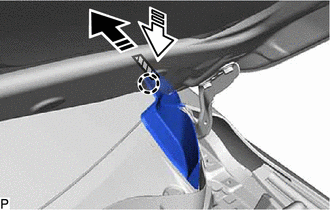

Engage the 2 guides and 2 claws as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)		Install in this Direction (2)
	Install in this Direction (3)		Double-sided Tape

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)
	Release Paper

Remove the release paper from a new front fender to cowl side seal LH in the direction of the arrow (1) shown in the illustration, and move it in the direction of the arrow (2) to engage the claw to install it.

NOTICE:

Securely attach the double-sided tape.

When reusing the front wiper arm and blade assembly RH:

i.

1.698,1.292 2.51,0.927 true 2.552,0.854 2.865,1.01 0.313,0.156 10 false *a

*a

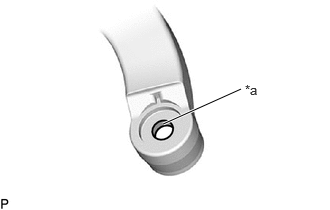

Serration

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.

When reusing the windshield wiper motor and link assembly:

i.

2.115,1.219 2.604,1.625 true 2.677,1.573 2.99,1.729 0.313,0.156 10 false *a

*a

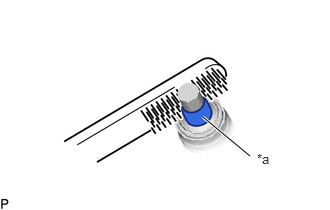

Serration

Clean the wiper pivot serrations with a wire brush.

NOTICE:

Do not grind down the wiper pivot serrations.

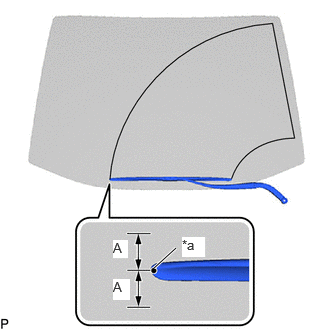

1.865,2.958 2.198,2.615 true 1.125,2.375 1.271,2.563 0.146,0.188 10 true A 0.969,2.74 1.115,2.938 0.146,0.198 10 true A 2.26,2.49 2.51,2.688 0.25,0.198 10 true *a

*a	Alignment Mark

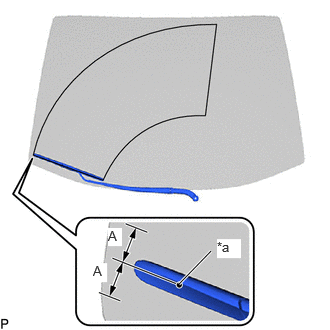

Install the front wiper arm and blade assembly RH with the nut to the position shown in the illustration.

Torque:

26 N*m (265 kgf*cm, 19 ft.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.

Reference Measurement:

Area	Measurement
A	10 mm (0.394 in.)

When reusing the front wiper arm and blade assembly LH:

i.

1.719,1.229 2.458,0.875 true 2.521,0.802 2.833,0.958 0.313,0.156 10 false *a

*a

Serration

Clean the wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.

When reusing the windshield wiper motor and link assembly:

i.

2.115,1.219 2.604,1.625 true 2.677,1.573 2.99,1.729 0.313,0.156 10 false *a

*a

Serration

Clean the wiper pivot serrations with a wire brush.

NOTICE:

Do not grind down the wiper pivot serrations.

1.604,2.792 1.833,2.583 true 1.177,2.5 1.333,2.688 0.156,0.188 10 true A 1.177,2.906 1.354,3.125 0.177,0.219 10 true A 1.896,2.469 2.135,2.677 0.24,0.208 10 true *a

*a	Alignment Mark

Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.

Torque:

26 N*m (265 kgf*cm, 19 ft.*lbf)

HINT:

Hold the wiper arm by hand while tightening the nut.

Reference Measurement:

Area	Measurement
A	10 mm (0.394 in.)

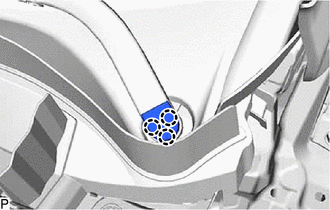

Engage the 3 claws to install the front wiper arm head cap.

HINT:

Use the same procedure for the RH side and LH side.
