WIPER / WASHER  FRONT WIPER MOTOR  REMOVAL

2.01,1.01 2.698,1.125 true 2.729,1.042 3,1.229 0.271,0.188 10 true *a

*a	Protective Tape
	Remove in this Direction

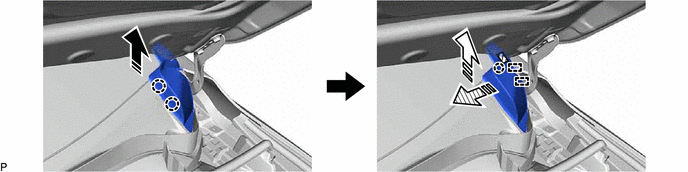

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration to remove the front wiper arm head cap.

HINT:

Use the same procedure for the RH side and LH side.

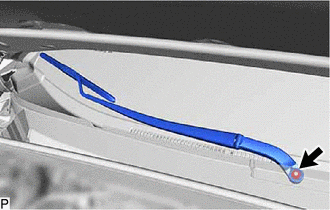

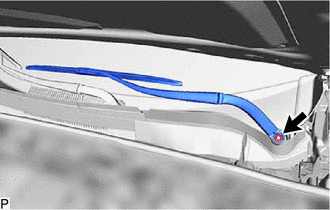

Remove the nut and front wiper arm and blade assembly LH.

Remove the nut and front wiper arm and blade assembly RH.

Disengage the 2 claws as shown in the illustration.

0,0 0,0 false

	Remove in this Direction (1)		Remove in this Direction (2)
	Remove in this Direction (3)		Double-sided Tape

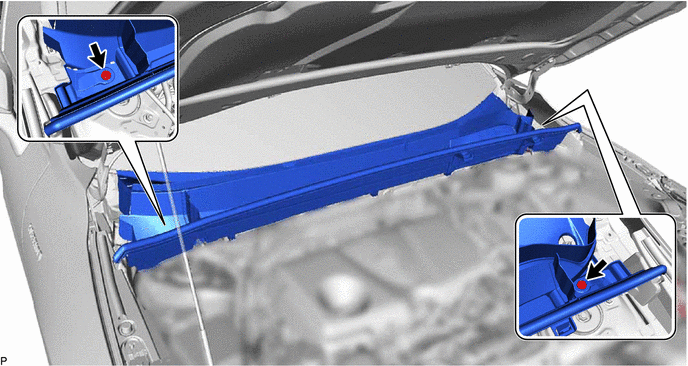

Remove the 2 clips.

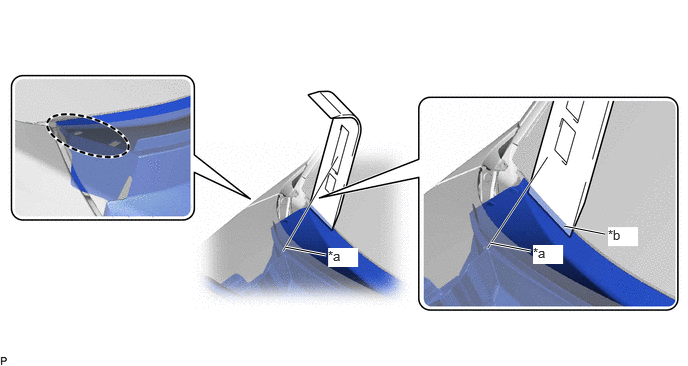

Insert a moulding remover at the starting position, as far as it can be inserted, to lift the cowl top ventilator louver sub-assembly and then hold it as shown in the illustration.

2.969,2.573 3.396,2.656 true 5.875,2.354 6.302,2.438 true 5.104,2.531 5.531,2.615 true 3.417,2.583 3.729,2.781 0.313,0.198 10 true *a 5.552,2.552 5.865,2.75 0.313,0.198 10 true *a 6.333,2.365 6.646,2.563 0.313,0.198 10 true *b

*a	Starting Position: Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned	*b	Inserted as Far as Possible
	Place Hand Here	-	-

2.01,1.979 2.677,1.792 true 2.688,1.677 3,1.833 0.313,0.156 10 false *a 0.958,1.646 1.115,1.844 0.156,0.198 10 false A

*a	Edge of Protective Tape
	Protective Tape

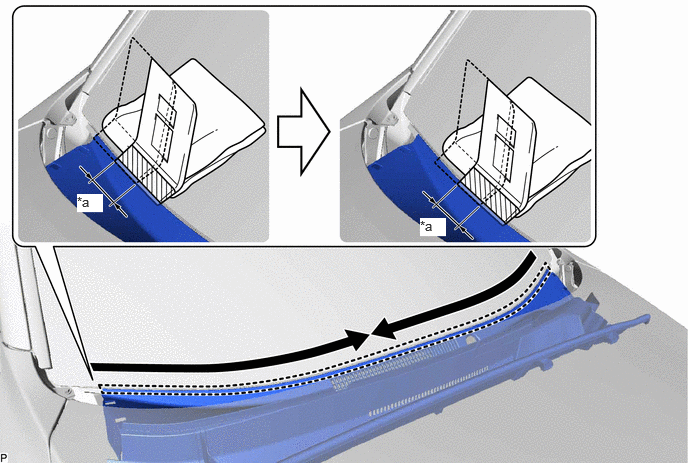

Apply protective tape to a moulding remover as shown in the illustration.

Standard Dimension:

Area	Dimension
A	4.0 mm (0.157 in.)

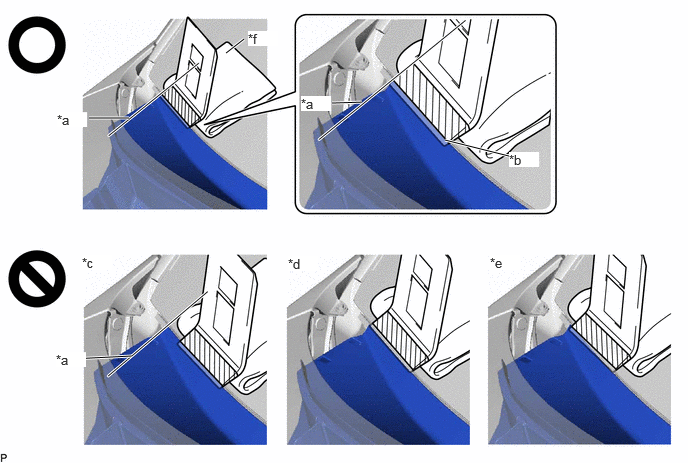

Insert the moulding remover at the starting position until the edge of the protective tape is aligned with the cowl top ventilator louver sub-assembly as shown in the illustration.

0.927,1.229 1.344,1.229 true 2.354,0.552 2.542,0.406 true 3.458,1.073 3.771,1.063 true 4.635,1.458 5.302,1.625 true 0.708,3.74 1.375,3.708 true 5.302,1.583 5.615,1.74 0.313,0.156 10 true *b 0.854,2.656 1.167,2.813 0.313,0.156 10 true *c 3,2.667 3.313,2.823 0.313,0.156 10 true *d 5.104,2.656 5.417,2.813 0.313,0.156 10 true *e 2.583,0.323 2.896,0.479 0.313,0.156 10 true *f 3.135,1 3.448,1.156 0.313,0.156 10 true *a 0.583,3.667 0.896,3.823 0.313,0.156 10 true *a 0.594,1.167 0.906,1.323 0.313,0.156 10 true *a

*a	Starting Position: Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned	*b	Inserted to Edge of Protective Tape
*c	Not Inserted at Starting Position	*d	Not Inserted to Edge of Protective Tape
*e	Not Inserted Straight	*f	Piece of Cloth or Equivalent
	Protective Tape	-	-

NOTICE:

·

To prevent damage to the windshield glass, set a piece of cloth between the moulding remover and windshield glass.

·

Make sure to insert the moulding remover until the edge of protective tape is aligned with the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

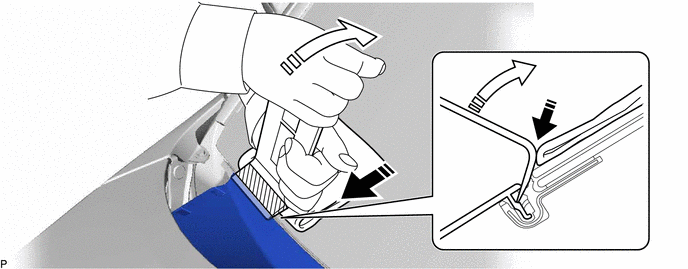

While pushing the moulding remover in the direction indicated by the arrow (A), push the moulding remover in the direction indicated by the arrow (B) to disengage the cowl top ventilator louver sub-assembly.

0,0 0,0 false

Push in this Direction (A)

Push in this Direction (B)

NOTICE:

·

Make sure to repeat this procedure to disengage the entire cowl top ventilator louver sub-assembly.

·

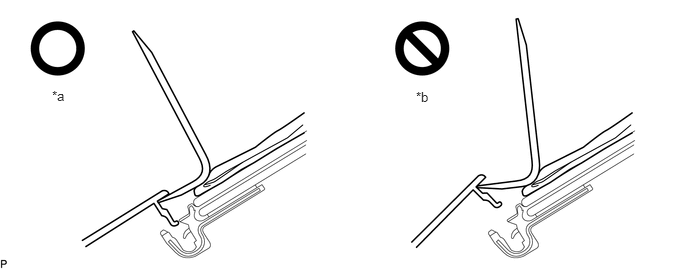

Make sure to perform this procedure while pushing the moulding remover in the direction indicated by the arrow (A), otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

·

Make sure not to pry the cowl top ventilator louver sub-assembly more than necessary to disengage it, otherwise it may be deformed or damaged.

4.333,0.927 4.646,1.083 0.313,0.156 10 false *b 0.542,0.917 0.854,1.073 0.313,0.156 10 false *a

*a

Pried Until Disengaged

*b

Pried Excessively

Using the moulding remover, repeatedly pry up the cowl top ventilator louver sub-assembly while gradually moving the moulding remover half of its width laterally toward the center of the vehicle and then repeat the procedure from the other side of the vehicle as shown in the illustration to disengage the cowl top ventilator louver sub-assembly from the windshield glass.

0.802,2.021 1.073,2.208 0.271,0.188 10 true *a 4.375,2.271 4.646,2.458 0.271,0.188 10 true *a

*a	Half Width of Moulding Remover	-	-
	Order of Removal	-	-

NOTICE:

·

Make sure to move the moulding remover only half of its width laterally after prying up the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be damaged or deformed.

·

Make sure not to lift up or pull the cowl top ventilator louver sub-assembly by hand before it is completely disengaged, otherwise it may be deformed or damaged.

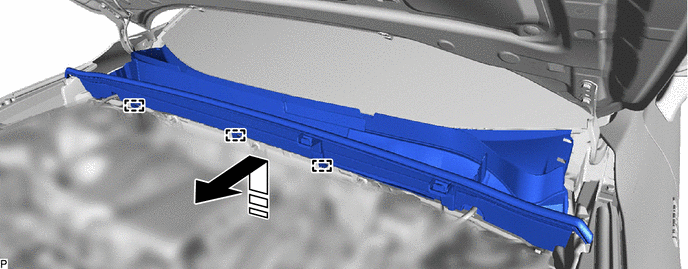

Disengage the 3 guides to remove the cowl top ventilator louver sub-assembly as shown in the illustration.

0,0 0,0 false

Remove in this Direction

-

-

2.052,0.635 2.281,0.823 0.229,0.188 10 true *a 0.344,0.521 0.583,0.729 0.24,0.208 10 false *b 3,1.188 3.24,1.396 0.24,0.208 10 true *b

*a	Connector
*b	Bolt
	Remove in this Direction

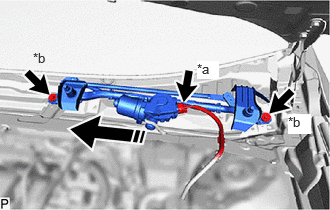

Disconnect the connector.

1.833,1.365 1.833,1.854 true 1.521,0.448 2.021,0.781 true 0.979,0.906 1.479,1.24 true 1.76,1.865 2.073,2.063 0.313,0.198 10 true *a 1.354,0.365 1.667,0.563 0.313,0.198 10 false *1 0.792,0.813 1.125,1.083 0.333,0.271 10 false *b

*1	No. 1 Wiper Link Rod
*a	Protective Tape
*b	Pivot of Windshield Wiper Motor Assembly

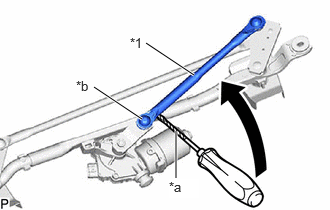

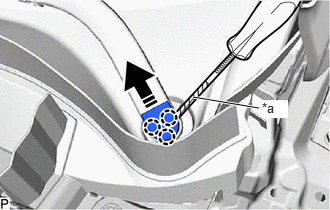

Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 wiper link rod from the pivot of the windshield wiper motor assembly as shown in the illustration.

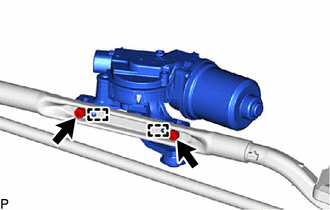

Using a T30 "TORX" socket wrench, remove the 2 bolts.
