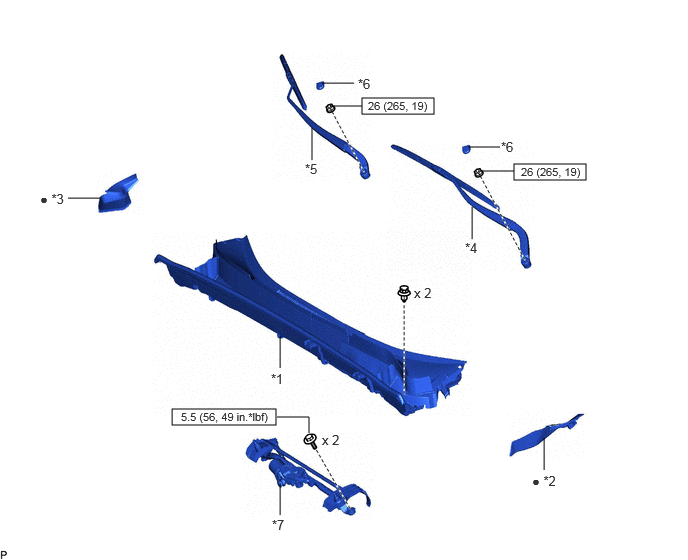

WIPER / WASHER  FRONT WIPER MOTOR  COMPONENTS

ILLUSTRATION

3.771,1.021 4.521,1.188 0.75,0.167 5.354,1.708 6.104,1.875 0.75,0.167 1.792,4.26 2.875,4.427 1.083,0.167 5.667,4.896 5.667,4.563 false 2.917,5.365 2.917,5.031 false 2.917,3.833 2.917,3.5 false 4.917,2.49 4.917,2.156 false 3.25,1.667 3.25,1.333 false 3.688,0.865 3.354,0.865 false 5.208,1.531 4.875,1.531 false 3.771,1.104 3.438,1.104 false 5.354,1.781 5.021,1.781 false 1.042,2.063 0.708,2.063 false 3.219,4.51 3.219,4.344 3.219,4.344 2.885,4.344 false 2.823,3.865 3.135,4.063 0.313,0.198 10 false *1 5.542,4.927 6.031,5.208 0.49,0.281 10 false ● *2 0.417,1.99 0.823,2.198 0.406,0.208 10 false ● *3 3.177,1.677 3.49,1.875 0.313,0.198 10 false *5 4.844,2.5 5.156,2.698 0.313,0.198 10 false *4 5.219,1.448 5.531,1.646 0.313,0.198 10 false *6 3.729,0.792 4.042,0.99 0.313,0.198 10 false *6 3.354,4.5 3.667,4.698 0.313,0.198 10 false x 2 2.833,5.385 3.146,5.583 0.313,0.198 10 false *7 4.313,2.969 4.625,3.167 0.313,0.198 10 false x 2 3.833,1.031 5.302,1.188 1.469,0.156 8 false 26 (265, 19) 5.427,1.719 6.896,1.875 1.469,0.156 8 false 26 (265, 19) 1.885,4.271 3.063,4.427 1.177,0.156 8 false 5.5 (56, 49 in.*lbf)

*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT FENDER TO COWL SIDE SEAL LH
*3	FRONT FENDER TO COWL SIDE SEAL RH	*4	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*5	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*6	FRONT WIPER ARM HEAD CAP
*7	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part

ILLUSTRATION

5.219,1.271 6.302,1.438 1.083,0.167 4.833,2.906 4.833,2.573 false 1.615,2.469 1.281,2.469 false 4.969,1.354 5.219,1.354 false 1.115,2.375 1.427,2.531 0.313,0.156 10 false *1 4.75,2.927 5.063,3.083 0.313,0.156 10 false *2 4.948,1.385 5.26,1.542 0.313,0.156 10 false x 2 5.292,1.281 6.833,1.427 1.542,0.146 8 false 7.5 (76, 66 in.*lbf)

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WINDSHIELD WIPER LINK ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque		MP grease
