WIPER / WASHER  FRONT WIPER MOTOR  INSPECTION


CAUTION / NOTICE / HINT

CAUTION:

Ensure that fingers or articles of clothing do not get caught in moving parts when performing this test.


PROCEDURE

Hide 85110 1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

a.

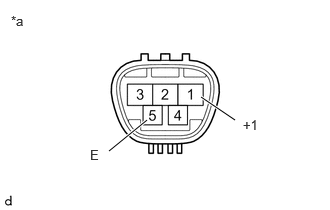

E427630C08
2.448,1.25 2.094,1.01 true 1.135,1.573 1.531,1.25 true 0.115,0.135 0.427,0.333 0.313,0.198 10 false *a 0.938,1.531 1.208,1.698 0.271,0.167 10 false E 2.531,1.219 2.813,1.438 0.281,0.219 10 false +1
*a Component without harness connected
(Windshield Wiper Motor Assembly)


Apply auxiliary battery voltage to the windshield wiper motor assembly and check the LO operation.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 1 (+1)
Auxiliary battery negative (-) → Terminal 5 (E) 		Motor operates at low speed (LO)



b.

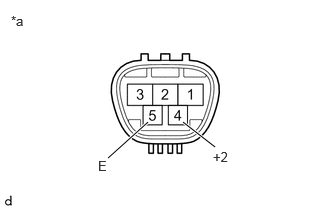

E427630C09
2.24,1.531 1.906,1.271 true 1.125,1.646 1.542,1.271 true 0.115,0.135 0.427,0.333 0.313,0.198 10 false *a 2.219,1.552 2.479,1.75 0.26,0.198 10 false +2 1.021,1.646 1.219,1.833 0.198,0.188 10 false E
*a Component without harness connected
(Windshield Wiper Motor Assembly)


Apply auxiliary battery voltage to the windshield wiper motor assembly and check the HI operation.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (+2)
Auxiliary battery negative (-) → Terminal 5 (E) 		Motor operates at high speed (HI)


If the result is not as specified, replace the windshield wiper motor assembly.
