RM38N0EC _59 Vehicle Exterior _111846 WIPER / WASHER _0500789 FRONT WIPER MOTOR G

WIPER / WASHER FRONT WIPER MOTOR ON-VEHICLE INSPECTION

PROCEDURE

Hide Display 85110 1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

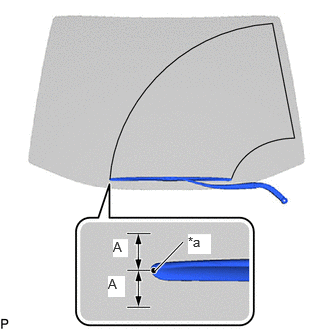

1.615,2.823 1.906,2.521 true 1.177,2.49 1.333,2.677 0.156,0.188 10 true A 1.125,2.875 1.302,3.094 0.177,0.219 10 true A 1.958,2.438 2.198,2.646 0.24,0.208 10 true *a

*a	Alignment Mark

for LH Side:

Operate the windshield wiper motor assembly.

ii.

Stop the windshield wiper motor assembly operation.

iii.

Check the automatic stop (park) position.

HINT:: After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the front wiper blade 2 times.

Standard Clearance:

Area	Measurement
A	10 mm (0.394 in.)

OK:: The front wiper stops at the position shown in the illustration.

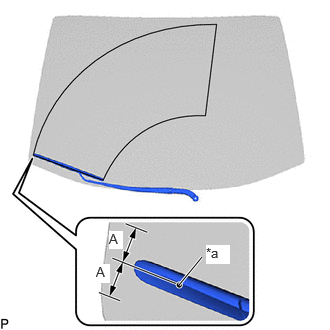

1.865,2.969 2.104,2.677 true 1.135,2.406 1.281,2.594 0.146,0.188 10 true A 1,2.75 1.146,2.948 0.146,0.198 10 true A 2.146,2.552 2.396,2.75 0.25,0.198 10 true *a

*a	Alignment Mark

for RH Side:

Operate the windshield wiper motor assembly.

ii.

Stop the windshield wiper motor assembly operation.

iii.

Check the automatic stop (park) position.

HINT:: After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the front wiper blade 2 times.

Standard Clearance:

Area	Measurement
A	10 mm (0.394 in.)

OK:: The front wiper stops at the position shown in the illustration.
