MAINTENANCE  REAR WIPER RUBBER  REMOVAL


PROCEDURE

Hide 85242 1.REMOVE REAR WIPER BLADE

a.

Lift the rear wiper arm and blade assembly.


b.

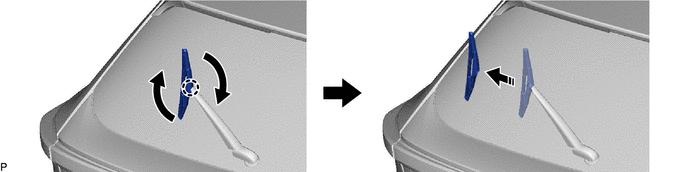

Raise the rear wiper blade to the position where the claw disengages with a click sound as shown in the illustration.

E474578C01
0,0 0,0 false
V113147

Remove in this Direction - -


NOTICE:

Be careful not to damage the claw.



c.

Pull the rear wiper blade as shown in the illustration to remove it from the rear wiper arm.

NOTICE:

Place a piece of cloth between the rear wiper arm and back door glass to avoid damaging the back door glass.



Hide 85214R 2.REMOVE REAR WIPER RUBBER

a.

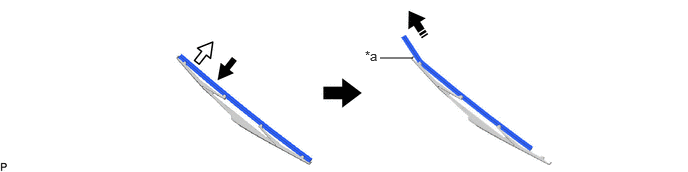

Lift and pull the end of the rear wiper rubber over the stopper as shown in the illustration.

E448781C01
3.958,0.604 4.302,0.604 false 3.802,0.5 4.115,0.698 0.313,0.198 10 false *a
*a Stopper - -
V100135

Push
V100136

Pull Out
V113147

Remove in this Direction - -


NOTICE:

Do not forcibly pull out the rear wiper rubber as the rear wiper rubber backing plates may be deformed or the claws of the rear wiper blade may be damaged.


HINT:

Lightly pushing the middle of the rear wiper rubber will allow it to be removed more easily.



b.

Remove the rear wiper rubber with the 2 rear wiper rubber backing plates from the rear wiper blade.


c.
E448782C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 rear wiper rubber backing plates from the rear wiper rubber as shown in the illustration.
