RM38N0EC _V1 General _112220 MAINTENANCE _0500787 FRONT WIPER RUBBER A

MAINTENANCE  FRONT WIPER RUBBER  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 85222A 1.REMOVE FRONT WIPER BLADE

a.

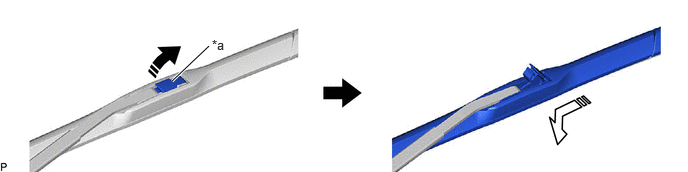

Pull up the holder of the front wiper blade as shown in the illustration.

E448774C02
1.792,0.844 2.177,0.479 true 2.208,0.385 2.521,0.583 0.313,0.198 10 false *a
*a Holder - -
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)



b.

Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:

Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.



Hide 85214B 2.REMOVE WIPER RUBBER

a.

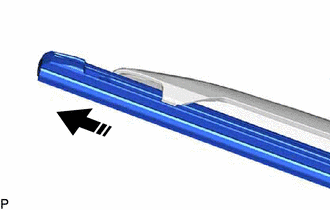

E448775C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the wiper rubber with the front wiper rubber backing plates from the front wiper blade as shown in the illustration.


b.

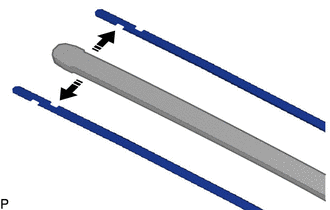

E478685C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 front wiper rubber backing plates from the wiper rubber as shown in the illustration.
