MAINTENANCE  AIR CONDITIONING FILTER  INSTALLATION


PROCEDURE

Hide 87139C 1.INSTALL CLEAN AIR FILTER

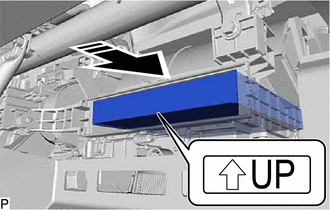

a.
E477616C01
0,0 0,0 false
V113147

Install in this Direction


Install the clean air filter as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the clean air filter.



Hide 88548B 2.INSTALL AIR FILTER CASE

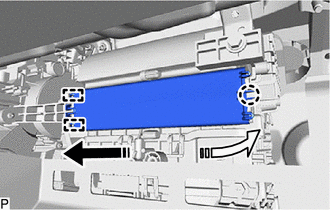

a.
E448502C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the 2 guides and claw as indicated by the arrows, in the order shown in the illustration to install the air filter case.
