RM38N0EC _V1 General _112220 MAINTENANCE _0500786 AIR CONDITIONING FILTER A

MAINTENANCE AIR CONDITIONING FILTER REMOVAL

PROCEDURE

Hide Display 55550 1.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0029,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0029,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0029,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0029,

Hide Display 88548B 2.REMOVE AIR FILTER CASE

a.

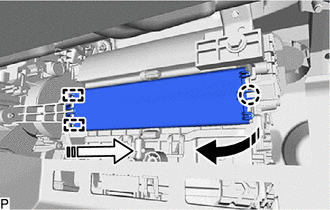

E448501C01

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Disengage the claw and 2 guides as indicated by the arrows, in the order shown in the illustration to remove the air filter case.

Hide Display 87139C 3.REMOVE CLEAN AIR FILTER

a.

E477615C01

0,0 0,0 false

V113147

Remove in this Direction

Remove the clean air filter as shown in the illustration.
