RM38N0EC _V1 General _112220 MAINTENANCE _0500785 TRANSMITTER BATTERY A

MAINTENANCE  TRANSMITTER BATTERY  INSTALLATION


PROCEDURE

Hide 89745C 1.INSTALL TRANSMITTER BATTERY

a.
B587790C01
0,0 0,0 false
V113147

Install in this Direction

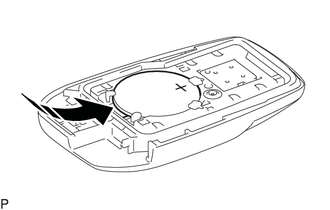

Install the transmitter battery (lithium battery: CR2450) with the positive (+) side facing upward, as shown in the illustration.

NOTICE:
·

Do not bend the transmitter battery electrode during installation.

·

Keep the inside of the transmitter housing cover free of dust and oil.

·

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.




b.
B587791C01
0,0 0,0 false
V113147

Install in this Direction

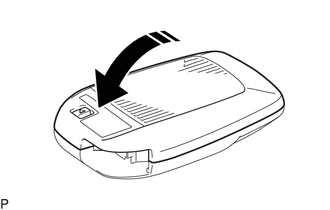

Install the transmitter housing cover by pressing down on it as shown in the illustration.


c.
B587793C01
0,0 0,0 false
V113147

Install in this Direction

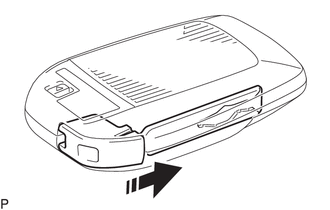

Insert the mechanical key into the transmitter as shown in the illustration.


d.

Press one of the transmitter switches and check that the LED illuminates.

OK:

Transmitter LED illuminates when a switch is pressed.
