RM38N0EC _58 Vehicle Interior _111839 SEAT _0500782 POWER SEAT CONTROL ECU A

SEAT POWER SEAT CONTROL ECU INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

Hide Display 89710 1.INSTALL POSITION CONTROL ECU ASSEMBLY

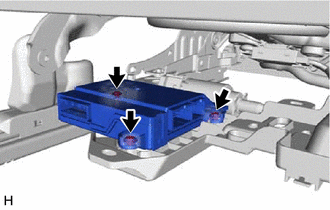

Install the position control ECU assembly LH with the 3 screws.

Connect the 3 connectors.

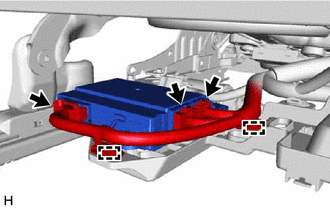

Engage the 2 clamps.

Hide Display 2.INSTALL FRONT SEAT ASSEMBLY LH
